View larger
Images are for illustrative purposes only. Please refer to data sheet for details

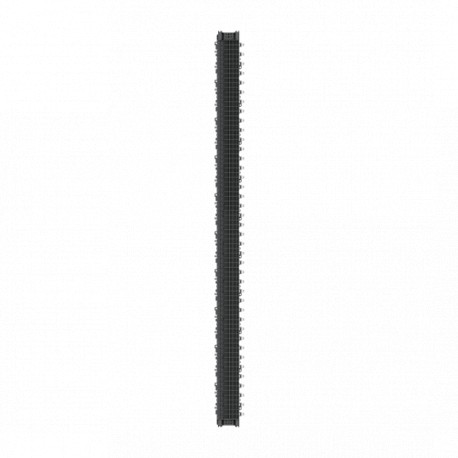

2CCF212425A0001 ABB SMISSLINE TP-Kit prem. 80 mod.3LN+LALB
2CCF212425A0001
2CCF212425A0001
ABB
1 Pcs.
SMISSLINE TP-Kit prem. 80 mod.3LN+LALB
ZLSP950E80-3LNLALB - Starter pack Power
Automation > Busbar
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108470A4390 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 94.66 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Sustainable Material Content in Packaging (wt. %) | FSC Mix Cardboard - 90.41 % |
| Recycled Cardboard - 4.61 % | |
| 0 % | |
| 0 % | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| End Of Life Disassembling Instructions | 9AKK108470A3547 |
| Environmental Product Declaration - EPD | 9AKK108470A0226 |
| Technical | |
| Model Number | Other |
| Options Provided | 3LNLALB |
| Electrical | |
| Rated Current (In) | 250 A |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A9646 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240603 |
| REACH Declaration | 9AKK108467A9561 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230417 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 9AKK108467A9561 |
| Dimensions | |
| Product Net Width | 113 mm |
| Product Net Height | 1515 mm |
| Product Net Depth / Length | 49 mm |
| Product Net Weight | 5836 g |
| Dimension Diagram | 9AKK107492A6192 |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 6214 g |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A9647 |
| Installation | |
| Instructions and Manuals | 2CCR213000B0001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6192 |
| External Classifications and Standards | |
| ETIM 9 | EC001522 - Busbar |
| ETIM 10 | EC001522 - Busbar |
| eClass | V11.0 : 27370303 |
| Object Classification Code | F |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 250 A |
| Model (EF000010) | Other |
| Length (EF001438) | 49 mm |
| Width (EF000008) | 113 mm |
| Height (EF000040) | 1515 mm |
| Flexible (EF000083) | No |
