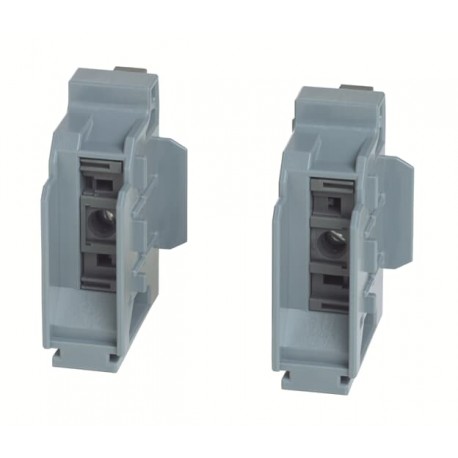

ABB 2CCF212085A0001 2CCF212085A0001 ABB ZLSP921 End cap auxiliary plinth PE/N View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCF212085A0001 ABB ZLSP921 End cap auxiliary plinth PE/N

2CCF212085A0001

2CCF212085A0001

ABB

1 Pcs.

ZLSP921 End cap auxiliary plinth PE/N ZLSP921 - Socket end

Automation > Busbar
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An end cap auxiliary plinth functions as a protective and terminal accessory for modular busbar and distribution systems, sealing exposed ends to prevent accidental contact and debris ingress. These components are typically integrated into electrical enclosures and switchgear assemblies to ensure compliance with safety standards and provide a clean finish to busbar runs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 94.66 %
  • ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
  • Sustainable Material Content in Packaging (wt. %): FSC Mix Cardboard - 90.41 %
  • Improved Energy Efficiency for Customers: Process Efficiency - Product improves/optimizes process
  • End Of Life Disassembling Instructions: 9AKK108470A3547
  • Environmental Product Declaration - EPD: 9AKK108470A0226
  • Model Number: Profile
  • Options Provided: ZLSP
  • Surface Finishing: Silver-plated
  • RoHS Declaration: 9AKK107991A9646
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240603
  • REACH Declaration: 9AKK108467A9561
  • REACH Information: True - contains substances > 0.1 mass percentage
  • REACH Date: 20230417

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 94.66 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)FSC Mix Cardboard - 90.41 %
Recycled Cardboard - 4.61 %
0 %
0 %
Improved Energy Efficiency for CustomersProcess Efficiency - Product improves/optimizes process
End Of Life Disassembling Instructions9AKK108470A3547
Environmental Product Declaration - EPD9AKK108470A0226
Technical
Model NumberProfile
Options ProvidedZLSP
Design
Surface FinishingSilver-plated
Material Compliance
RoHS Declaration9AKK107991A9646
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240603
REACH Declaration9AKK108467A9561
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20230417
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Environmental Information9AKK108467A9561
Dimensions
Product Net Width31 mm
Product Net Height43 mm
Product Net Depth / Length66 mm
Product Net Weight54 g
Dimension Diagram9AKK107492A6192
Engineering
EPLAN Data9AAC212943_EPLAN
Ordering
Package Level 1 Unitscarton 2 piece
Package Level 1 Gross Weight166 g
E-Number (Switzerland)809999105
Certificates and Declarations
Declaration of Conformity - CE9AKK107991A9647
Installation
Instructions and Manuals2CCR213000B0001
Popular Downloads
Data Sheet, Technical Information9AKK107492A6192
External Classifications and Standards
ETIM 9EC001522 - Busbar
ETIM 10EC001522 - Busbar
eClassV11.0 : 27370303
Object Classification CodeF

Product Datasheet
