View larger
Images are for illustrative purposes only. Please refer to data sheet for details

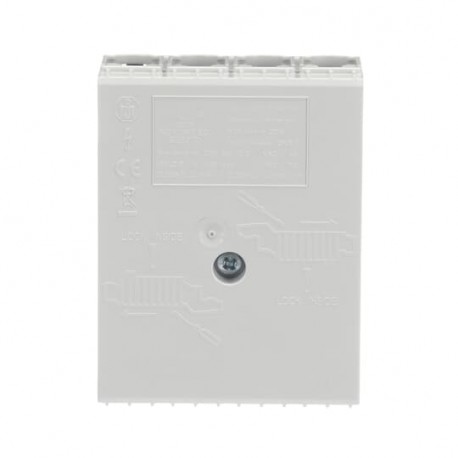

2CCF181818R0001 ABB SMISSLINE-Aliment. 3LN-Standard Left
2CCF181818R0001
181818
ABB
1 Pcs.
SMISSLINE-Aliment. 3LN-Standard Left
SMISSLINE-Aliment. 3LN-Izq.standard
ZLS924-3LN Incoming terminal block
Automation > Busbar
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108470A4407 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 85.28 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Sustainable Material Content in Packaging (wt. %) | 0 % |
| FSC Mix Cardboard - 73.5 % | |
| FSC Mix Cardboard - 25.61 % | |
| FSC Mix Paper - 0.16 % | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| End Of Life Disassembling Instructions | 9AKK108470A2006 |
| Environmental Product Declaration - EPD | 9AKK108470A0225 |
| Technical | |
| Model Number | Flat |
| Electrical | |
| Rated Current (In) | 160 A |
| Design | |
| Surface Finishing | Tinned |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A9646 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20210407 |
| REACH Declaration | 9AKK108467A9561 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230417 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | f73ada2a-980b-4421-95bb-de0a973a461c Germany |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 9AKK108467A9561 |
| Dimensions | |
| Product Net Width | 72 mm |
| Product Net Height | 43 mm |
| Product Net Depth / Length | 93 mm |
| Product Net Weight | 187 g |
| Dimension Diagram | 9AKK107492A6192 |
| Engineering | |
| EPLAN Data | 9AAF617140_EPLAN |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 245 g |
| E-Number (Norway) | 1634392 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A9646 |
| Installation | |
| Instructions and Manuals | 2CCR181840B0001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6192 |
| External Classifications and Standards | |
| ETIM 9 | EC001522 - Busbar |
| ETIM 10 | EC001522 - Busbar |
| eClass | V11.0 : 27370303 |
| Object Classification Code | F |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 160 A |
| Model (EF000010) | Flat |
| Length (EF001438) | 93 mm |
| Width (EF000008) | 72 mm |
| Height (EF000040) | 43 mm |
| Flexible (EF000083) | Yes |
| Surface protection (EF000139) | Tinned |
