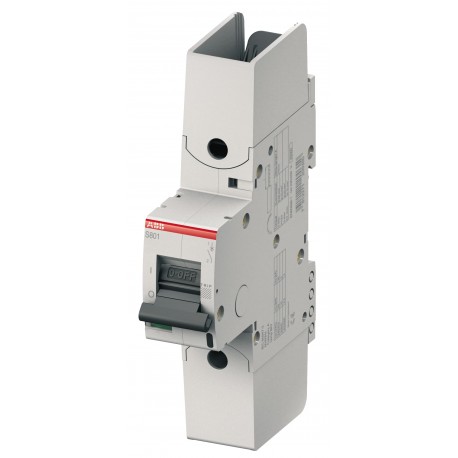

2CCF030021R0001 ABB Int.aut. S801HV-K1.6 1p 1.6A

2CCF030021R0001

030021

ABB

1 Pcs.

Int.aut. S801HV-K1.6 1p 1.6A S801HV-K1.6 High Performance MCB

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for specialized industrial installations, the ABB 2CCF030021R0001 circuit breaker offers reliable protection against overcurrents and electrical faults in high-voltage DC or AC systems. Devices of this category secure critical infrastructure by interrupting dangerous fault currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • EcoSolutions Profile: 9AKK108471A1082
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 86.29 %
  • ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
  • End Of Life Disassembling Instructions: 9AKK108470A2575
  • Environmental Product Declaration - EPD: 9AKK108470A1695
  • Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (580V) 1.5 kA
  • Rated Service Short-Circuit Breaking Capacity (I cs ): (580V) 1.5 kA
  • Contact Position Indication: ON / OFF / TRIP
  • Energy Limiting Class: 3
  • Number of Protected Poles: 1
  • Number of Poles: 1P
  • Tightening Torque: 3.5 N·m
  • Actuator Marking: I / O
  • Recommended Screw Driver: Pozidriv 2
  • Accessories Available: Yes

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108471A1082
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 86.29 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions9AKK108470A2575
Environmental Product Declaration - EPD9AKK108470A1695
9AKK108470A1696
Technical
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(580V) 1.5 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(580V) 1.5 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles1
Number of Poles1P
Tightening Torque3.5 N·m
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
RemarksConnection from top and bottom Connecting with CU only IP40 in enclosure with cover Cage terminal with captive screw
Connecting CapacityFlexible 0 … 50 mm²
Rigid 0 … 70 mm²
Terminal TypeScrew Terminals
Electrical
Tripping CharacteristicK
Rated Operational Voltageacc. to IEC 60947-2 580 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeAC
Rated Current (In)1.6 A
Rated Frequency (f)50/60 Hz
Power LossTotal 2.9 W
at Rated Operating Conditions per Pole 2.9 W
Overvoltage CategoryIII
Design
Housing MaterialInsulation group I, RAL 7035
Material Compliance
RoHS Declaration2CCC005084D0202
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20211214
REACH Declaration9AKK108470A9089
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250313
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -40 ... 70 °C
Storage -40 ... 70 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 7 - 13.2 Hz
0.7g with Load 100% x Ie 13.2 - 100 Hz
Environmental Information2CCY413207D0203
Dimensions
Width in Number of Modular Spacings1.5
Product Net Width27 mm
Product Net Height142 mm
Product Net Depth / Length82.5 mm
Product Net Weight240 g
Built-In Depth (t2)82.5 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight310 g
Certificates and Declarations
Declaration of Conformity - CE2CCC005084D0202
Installation
Instructions and Manuals2CCC413016M0008
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
Popular Downloads
Data Sheet, Technical Information9AKK108468A9560
9AKK108468A9561
9AKK108468A9562
External Classifications and Standards
ETIM 9EC000042 - Miniature circuit breaker (MCB)
ETIM 10EC000042 - Miniature circuit breaker (MCB)
UNSPSC39121603
eClassV11.0 : 27141901
Object Classification CodeF
StandardsIEC/EN 60947-2
UL 1077

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
