ABB 2CCF020068R0001 2CCF020068R0001 ABB Int.aut. S803HV-K2 3p 2A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

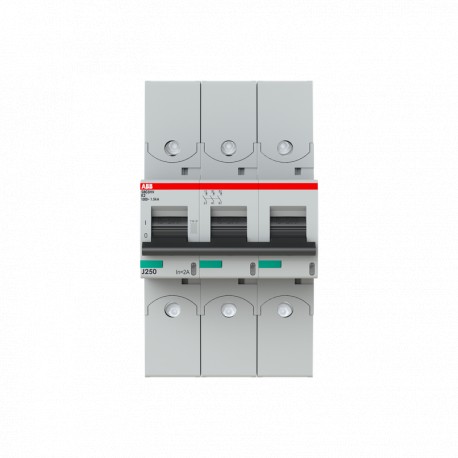

2CCF020068R0001 ABB Int.aut. S803HV-K2 3p 2A

2CCF020068R0001

020068

ABB

1 Pcs.

Int.aut. S803HV-K2 3p 2A S803HV-K2 High Performance MCB

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB S803HV-K2 high-performance circuit breaker functions as an advanced protective switching device capable of interrupting high fault currents in demanding electrical installations. These specialized components protect heavy-duty industrial equipment and high-voltage distribution lines from severe electrical anomalies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • EcoSolutions Profile: 9AKK108471A1082
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 86.29 %
  • ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
  • End Of Life Disassembling Instructions: 9AKK108470A2575
  • Environmental Product Declaration - EPD: 9AKK108470A1695
  • Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (1000 V AC) 1.5 kA
  • Rated Service Short-Circuit Breaking Capacity (I cs ): (1000 V AC) 1.5 kA
  • Contact Position Indication: ON / OFF / TRIP
  • Energy Limiting Class: 3
  • Number of Protected Poles: 3
  • Number of Poles: 3P
  • Tightening Torque: 3.5 N·m
  • Actuator Marking: I / O
  • Recommended Screw Driver: Pozidriv 2
  • Accessories Available: Yes

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108471A1082
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 86.29 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions9AKK108470A2575
Environmental Product Declaration - EPD9AKK108470A1695
9AKK108470A1696
Technical
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 1.5 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 1.5 kA
Contact Position IndicationON / OFF / TRIP
Energy Limiting Class3
Number of Protected Poles3
Number of Poles3P
Tightening Torque3.5 N·m
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableYes
RemarksConnection from top and bottom Connecting with CU only IP40 in enclosure with cover Cage terminal with captive screw
Connecting CapacityFlexible 0 … 50 mm²
Rigid 0 … 70 mm²
Terminal TypeScrew Terminals
Electrical
Tripping CharacteristicK
Rated Operational Voltageacc. to IEC 60947-2 1000 V AC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeAC
Rated Current (In)2 A
Rated Frequency (f)50/60 Hz
Power LossTotal 6.6 W
at Rated Operating Conditions per Pole 2.2 W
Overvoltage CategoryIII
Design
Housing MaterialInsulation group I, RAL 7035
Material Compliance
RoHS Declaration2CCC005084D0202
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20211214
REACH Declaration9AKK108470A9089
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250313
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -40 ... 70 °C
Storage -40 ... 70 °C
Degree of ProtectionIP20
Pollution Degree2
Resistance to Vibrations1 mm 7 - 13.2 Hz
0.7g with Load 100% x Ie 13.2 - 100 Hz
Environmental Information2CCY413207D0203
Dimensions
Width in Number of Modular Spacings4.5
Product Net Width81 mm
Product Net Height142 mm
Product Net Depth / Length82.5 mm
Product Net Weight720 g
Built-In Depth (t2)82.5 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight850 g
Certificates and Declarations
Declaration of Conformity - CE2CCC005084D0202
Installation
Instructions and Manuals2CCC413016M0008
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
Popular Downloads
Data Sheet, Technical Information9AKK108468A9560
9AKK108468A9561
9AKK108468A9562
External Classifications and Standards
ETIM 9EC000042 - Miniature circuit breaker (MCB)
ETIM 10EC000042 - Miniature circuit breaker (MCB)
UNSPSC39121603
eClassV11.0 : 27141901
Object Classification CodeF
StandardsIEC/EN 60947-2
UL 1077

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
