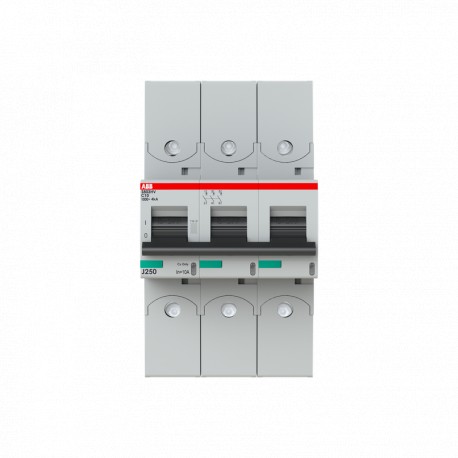

2CCF019650R0001 ABB Int.aut. S803HV-C10 3p 10A
2CCF019650R0001
019650
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB S803HV-C10 Circuit Breaker (part number 2CCF019650R0001) is engineered for high-voltage and demanding industrial power distribution networks. It provides reliable protection against system overloads and short circuits to secure critical equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 82.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 10 A
- Rated insulation voltage Ui (EF001366): 1000 V
- Rated impulse withstand voltage Uimp (EF011980): 8 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
- Width in number of modular spacings (EF002950): 4.5
- Degree of protection (IP) (EF005474): IP20
More info
▲- Extended Product Type:
- S803HV-C10
- Product ID:
- 2CCF019650R0001
- EAN:
- 7612271472221
- Catalog Description:
- S803HV-C10 High Performance MCB
- Long Description:
- The S803HV-C10 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal, long separating plates and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803HV-C10 complies with IEC/EN 60947-2, UL1077 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S803HV-C10 more comfortable. Due to the fast arc extinction of S803HV-C10 your application will be secured.
Technical
- Standards:
- IEC/EN 60947-2, UL 1077
- Tripping Characteristic:
- C
- Rated Voltage (Ur):
- acc. to IEC 60947-2 580/1000 V AC
acc. to IEC 60947-2 1000 V AC
- Rated Operational Voltage:
- acc. to IEC 60947-2 580/1000 V AC
acc. to IEC 60947-2 1000 V AC
- Rated Insulation Voltage (Ui):
- acc. to IEC/EN 60664-1 1000 V AC
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Input Voltage Type:
- AC
- Rated Current (In):
- 10 A
- Rated Operational Current (Ie):
- 10 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (580 / 1000 V AC) 4 kA
- Rated Conditional Short-Circuit Current (Inc):
- (230 V) 4 kA
(400 V) 4 kA
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (580 / 1000 V AC) 2.5 kA
- Frequency (f):
- 50...60 Hz
- Rated Frequency (f):
- 50...60 Hz
- Power Loss:
- 4.5 W
at Rated Operating Conditions per Pole 1.5 W
- Contact Position Indication:
- ON / OFF / TRIP
- Number of Poles:
- 3
- Number of Protected Poles:
- 3
- Overvoltage Category:
- III
- Tightening Torque:
- 3.5 N·m
- Release Type:
- C
- Actuator Marking:
- I / O
- Housing Material:
- Insulation group I, RAL 7035
- Mounting on DIN Rail:
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position:
- Any
- Recommended Screw Driver:
- Pozidriv 2
- Accessories Available:
- Yes
- Remarks:
- Connection from top and bottom
Connecting with CU only
IP40 in enclosure with cover
Cage terminal with captive screw
- Connecting Capacity:
- Flexible 0...50 mm²
Rigid 0...70 mm²
- Terminal Type:
- Screw Terminals
Environmental
- Ambient Temperature:
- -25...60 °C
- Ambient Air Temperature:
- Operation -25...60 °C
- Degree of Protection:
- IP20
- Pollution Degree:
- 2
- Resistance to Vibrations acc. to IEC 60068-2-6:
- 2 - 13.2 Hz / 1mm
13.2 - 100Hz / 0.7g
with load 100% x Ie
- Resistance to Shock acc. to IEC 60068-2-27:
- 5 g
30 ms
- RoHS Status:
- Following EU Directive 2011/65/EU
- Environmental Information:
- 2CCY413207D0203
Technical UL/CSA
- Maximum Operating Voltage UL/CSA:
- 600Y V AC
- Interrupting Rating acc. to UL1077:
- (600 V AC) 15 kA
Dimensions
- Width in Number of Modular Spacings:
- 4.5
- Product Net Width:
- 81mm
- Product Net Height:
- 142mm
- Product Net Depth / Length:
- 82.5mm
- Product Net Weight:
- 720g
- Built-In Depth (t2):
- 82.5 mm
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 152 mm
- Package Level 1 Height:
- 99 mm
- Package Level 1 Depth / Length:
- 86 mm
- Package Level 1 Gross Weight:
- 850 g
- Package Level 1 EAN:
- 7612271472221
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362010
- Country of Origin:
- Switzerland (CH)
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CCC005084D0202
- Environmental Information:
- 2CCY413207D0203
- Instructions and Manuals:
- 2CCC413016M0008
- RoHS Information:
- 9AKK107680A3903
2CCC005084D0202
Popular Downloads
- Data Sheet, Technical Information:
- 2CCC413003C0208
- Instructions and Manuals:
- 2CCC413016M0008
Classifications
- ETIM 7:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 8:
- EC000042 - Miniature circuit breaker (MCB)
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Business
- CN8:
- 85362020
- eClass:
- V11.0 : 27141901
- Object Classification Code:
- F
