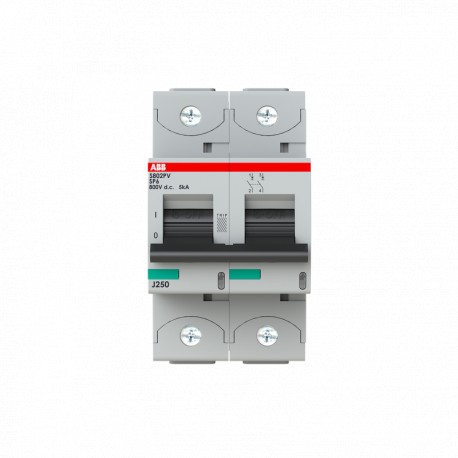

Int.aut. S802PV-SP6 2p 6A 5kA S802PV-SP6 High Performance MCB

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Optimized for photovoltaic applications, the Abb 2CCF019643R0001 ABB Int.aut. S802PV-SP6 2p 6A 5kA safely interrupts direct current faults in specialized solar energy installations. Specialized DC circuit breakers are crucial for protecting renewable energy infrastructure and associated inverter systems from electrical overloads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • EcoSolutions Profile: 9AKK108471A1082
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 86.29 %
  • ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
  • End Of Life Disassembling Instructions: 9AKK108470A2575
  • Environmental Product Declaration - EPD: 9AKK108470A1695
  • Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (800 V DC) 5 kA
  • Rated Service Short-Circuit Breaking Capacity (I cs ): (800 V DC) 5 kA
  • Energy Limiting Class: 3
  • Number of Protected Poles: 2
  • Number of Poles: 2P
  • Release Type: SP
  • Actuator Marking: I / O
  • Accessories Available: Yes
  • Connecting Capacity: Flexible 0 … 50 mm²
  • Tripping Characteristic: SP

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108471A1082
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 86.29 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions9AKK108470A2575
Environmental Product Declaration - EPD9AKK108470A1695
9AKK108470A1696
Technical
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V DC) 5 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V DC) 5 kA
Energy Limiting Class3
Number of Protected Poles2
Number of Poles2P
Release TypeSP
Actuator MarkingI / O
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm²
Rigid 0 … 70 mm²
Electrical
Tripping CharacteristicSP
Rated Operational Voltageacc. to IEC 60947-2 800 V DC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeDC
Rated Current (In)6 A
Frequency (f)0...0 Hz
Rated Frequency (f)0 Hz
Power LossTotal 3.6 W
at Rated Operating Conditions per Pole 1.8 W
Overvoltage CategoryIII
Material Compliance
RoHS Declaration2CCC005084D0202
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20211214
REACH Declaration9AKK108470A9089
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250313
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -40 ... 70 °C
Storage -40 ... 70 °C
Degree of ProtectionIP20
Pollution Degree2
Environmental Information2CCY413207D0203
Dimensions
Width in Number of Modular Spacings3
Product Net Width54 mm
Product Net Height95 mm
Product Net Depth / Length82.5 mm
Product Net Weight490 g
Built-In Depth (t2)82.5 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight510 g
E-Number (Finland)3214001
Certificates and Declarations
CB Certificate9AKK107492A5628
CCC CertificateCQC2019010307237666
Declaration of Conformity - CE2CCC005084D0202
VDE Certificate9AKK107680A0847
Regulatory Compliance Mark (RCM)Yes
Installation
Instructions and Manuals2CCC413016M0008
Popular Downloads
Data Sheet, Technical Information9AKK108468A9560
9AKK108468A9561
9AKK108468A9562
External Classifications and Standards
ETIM 9EC000042 - Miniature circuit breaker (MCB)
ETIM 10EC000042 - Miniature circuit breaker (MCB)
UNSPSC39121603
eClassV11.0 : 27141901
IDEA Granular Category Code (IGCC)4899 >> Miniature circuit breaker (MCB) screw-in model
Object Classification CodeF
StandardsIEC/EN 60947-2
