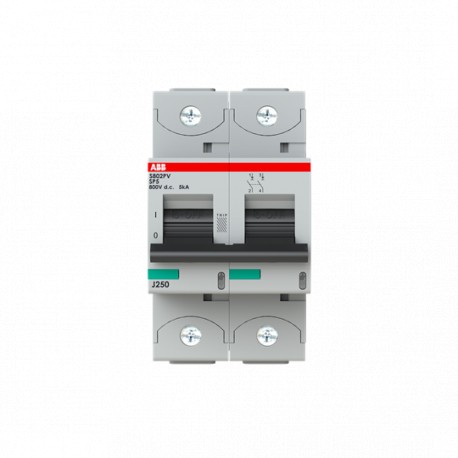

Int.aut. S802PV-SP5 2p 5A 5kA S802PV-SP5 High Performance MCB

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

2CCF019596R0001 ABB Int.aut. S802PV-SP5 2p 5A 5kA serves as a specialized circuit breaker used to interrupt fault currents and protect electrical infrastructure in power distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • EcoSolutions Profile: 9AKK108471A1082
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 86.29 %
  • ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
  • End Of Life Disassembling Instructions: 9AKK108470A2575
  • Environmental Product Declaration - EPD: 9AKK108470A1695
  • Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (800 V DC) 5 kA
  • Rated Service Short-Circuit Breaking Capacity (I cs ): (800 V DC) 5 kA
  • Energy Limiting Class: 3
  • Number of Protected Poles: 2
  • Number of Poles: 2P
  • Release Type: SP
  • Actuator Marking: I / O
  • Accessories Available: Yes
  • Connecting Capacity: Flexible 0 … 50 mm²
  • Tripping Characteristic: SP

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108471A1082
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 86.29 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions9AKK108470A2575
Environmental Product Declaration - EPD9AKK108470A1695
9AKK108470A1696
Technical
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V DC) 5 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V DC) 5 kA
Energy Limiting Class3
Number of Protected Poles2
Number of Poles2P
Release TypeSP
Actuator MarkingI / O
Accessories AvailableYes
Connecting CapacityFlexible 0 … 50 mm²
Rigid 0 … 70 mm²
Electrical
Tripping CharacteristicSP
Rated Operational Voltageacc. to IEC 60947-2 800 V DC
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1500 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Input Voltage TypeDC
Rated Current (In)5 A
Frequency (f)0...0 Hz
Rated Frequency (f)0 Hz
Power Loss3 W
at Rated Operating Conditions per Pole 1.5 W
Overvoltage CategoryIII
Material Compliance
RoHS Declaration2CCC005084D0202
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20211214
REACH Declaration9AKK108470A9089
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250313
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of ProtectionIP20
Pollution Degree2
Environmental Information2CCY413207D0203
Dimensions
Width in Number of Modular Spacings3
Product Net Width54 mm
Product Net Height95 mm
Product Net Depth / Length82.5 mm
Product Net Weight490 g
Built-In Depth (t2)82.5 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight510 g
E-Number (Finland)3214000
Certificates and Declarations
CB Certificate9AKK107492A5628
CCC CertificateCQC2019010307237666
Declaration of Conformity - CE2CCC005084D0202
VDE Certificate9AKK107680A0847
Regulatory Compliance Mark (RCM)Yes
Installation
Instructions and Manuals2CCC413016M0008
Popular Downloads
Data Sheet, Technical Information9AKK108468A9560
9AKK108468A9561
9AKK108468A9562
External Classifications and Standards
ETIM 9EC000042 - Miniature circuit breaker (MCB)
ETIM 10EC000042 - Miniature circuit breaker (MCB)
eClassV11.0 : 27141901
Object Classification CodeF
StandardsIEC/EN 60947-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
