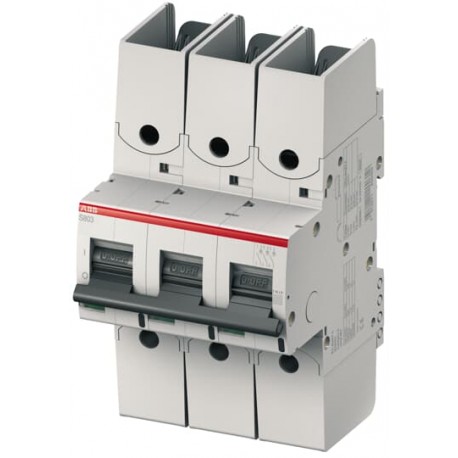

ABB 2CCF019043R0001 2CCF019043R0001 ABB Int.aut. S803HV-K63 3p 63A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCF019043R0001 ABB Int.aut. S803HV-K63 3p 63A

2CCF019043R0001

019043

ABB

1 Pcs.

Int.aut. S803HV-K63 3p 63A S803HV-K63 High Performance MCB

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    S803HV-K63
  • Product ID:
    2CCF019043R0001
  • EAN:
    7612271436926
  • Catalog Description:
    S803HV-K63 High Performance MCB
  • Long Description:
    The S803HV-K63 is a 3-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803HV-K63 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S803HV-K63 more comfortable. Due to the fast arc extinction of S803HV-K63 your application will be secured.

Technical

  • Standards:
    IEC/EN 60947-2, UL 1077
  • Tripping Characteristic:
    K
  • Rated Voltage (Ur):
    acc. to IEC 60947-2 580/1000 V AC
    acc. to IEC 60947-2 1000 V AC
  • Rated Operational Voltage:
    acc. to IEC 60947-2 580/1000 V AC
    acc. to IEC 60947-2 1000 V AC
  • Rated Insulation Voltage (Ui):
    acc. to IEC/EN 60664-1 1000 V AC
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Input Voltage Type:
    AC
  • Rated Current (In):
    63 A
  • Rated Operational Current (Ie):
    63 A
  • Rated Short-Circuit Capacity:
    (400 V) 2.5 kA
    (230 V) 2.5 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (580 / 1000 V AC) 4 kA
    (230 V) 4 kA
    (400 V) 4 kA
  • Rated Conditional Short-Circuit Current (Inc):
    (230 V) 4 kA
    (400 V) 4 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (580 / 1000 V AC) 2.5 kA
  • Frequency (f):
    60...60 Hz
  • Rated Frequency (f):
    50...60 Hz
  • Power Loss:
    19.2 W
    at Rated Operating Conditions per Pole 6.4 W
  • Contact Position Indication:
    ON / OFF / TRIP
  • Energy Limiting Class:
    3
  • Number of Poles:
    3
  • Number of Protected Poles:
    3
  • Overvoltage Category:
    III
  • Tightening Torque:
    3.5 N·m
  • Release Type:
    K
  • Actuator Marking:
    I / O
  • Housing Material:
    Insulation group I, RAL 7035
  • Mounting on DIN Rail:
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Any
  • Recommended Screw Driver:
    Pozidriv 2
  • Accessories Available:
    Yes
  • Remarks:
    Connection from top and bottom
    Connecting with CU only
    IP40 in enclosure with cover
    Cage terminal with captive screw
  • Connecting Capacity:
    Flexible 0...50 mm²
    Rigid 0...70 mm²
  • Terminal Type:
    Screw Terminals

Environmental

  • Ambient Temperature:
    -25...60 °C
  • Ambient Air Temperature:
    Operation -25...60 °C
  • Degree of Protection:
    IP20
  • Pollution Degree:
    2
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    2 - 13.2 Hz / 1mm
    13.2 - 100Hz / 0.7g
    with load 100% x Ie
  • Resistance to Shock acc. to IEC 60068-2-27:
    5 g
    30 ms
  • RoHS Status:
    Following EU Directive 2011/65/EU
  • Environmental Information:
    2CCY413207D0203

Dimensions

  • Width in Number of Modular Spacings:
    4.5
  • Product Net Width:
    81mm
  • Product Net Height:
    142mm
  • Product Net Depth / Length:
    82.5mm
  • Product Net Weight:
    720g
  • Built-In Depth (t2):
    82.5 mm

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    152 mm
  • Package Level 1 Height:
    99 mm
  • Package Level 1 Depth / Length:
    86 mm
  • Package Level 1 Gross Weight:
    850 g
  • Package Level 1 EAN:
    7612271436926

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362010
  • Country of Origin:
    Switzerland (CH)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC000042 - Miniature circuit breaker (MCB)
  • ETIM 8:
    EC000042 - Miniature circuit breaker (MCB)
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    85362020
  • eClass:
    V11.0 : 27141901
  • Object Classification Code:
    F
