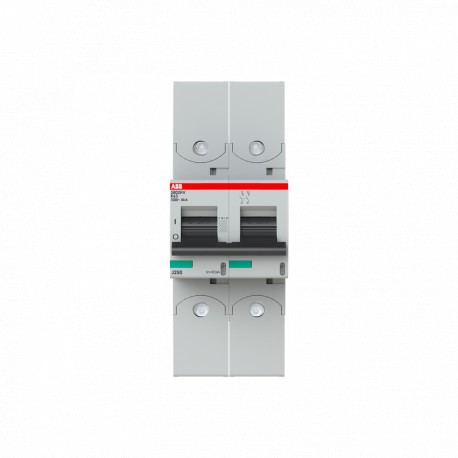

2CCF019029R0001 ABB Int.aut. S802HV-K63 2p 16A
2CCF019029R0001
019029
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Ensure dependable circuit protection in high-voltage environments with the ABB S802HV-K63 circuit breaker, part number 2CCF019029R0001. High-voltage protective devices are utilized in specialized industrial installations to safeguard equipment from overcurrent scenarios and ensure safe maintenance procedures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- EcoSolutions Profile: 9AKK108471A1082
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 86.29 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- End Of Life Disassembling Instructions: 9AKK108470A2575
- Environmental Product Declaration - EPD: 9AKK108470A1695
- Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (1000 V AC) 4 kA
- Rated Service Short-Circuit Breaking Capacity (I cs ): (1000 V AC) 2.5 kA
- Contact Position Indication: ON / OFF / TRIP
- Energy Limiting Class: 3
- Number of Protected Poles: 2
- Number of Poles: 2P
- Tightening Torque: 3.5 N·m
- Release Type: K
- Actuator Marking: I / O
- Recommended Screw Driver: Pozidriv 2
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A1082 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 86.29 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| End Of Life Disassembling Instructions | 9AKK108470A2575 |
| Environmental Product Declaration - EPD | 9AKK108470A1695 |
| 9AKK108470A1696 | |
| Technical | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 4 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 2.5 kA |
| Contact Position Indication | ON / OFF / TRIP |
| Energy Limiting Class | 3 |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Tightening Torque | 3.5 N·m |
| Release Type | K |
| Actuator Marking | I / O |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Remarks | Connection from top and bottom Connecting with CU only IP40 in enclosure with cover Cage terminal with captive screw |
| Connecting Capacity | Flexible 0 … 50 mm² |
| Rigid 0 … 70 mm² | |
| Terminal Type | Screw Terminals |
| Electrical | |
| Tripping Characteristic | K |
| Rated Operational Voltage | acc. to IEC 60947-2 1000 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 63 A |
| Frequency (f) | 60...60 Hz |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 12.8 W |
| at Rated Operating Conditions per Pole 6.4 W | |
| Overvoltage Category | III |
| Design | |
| Housing Material | Insulation group I, RAL 7035 |
| Material Compliance | |
| RoHS Declaration | 2CCC005084D0202 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211214 |
| REACH Declaration | 9AKK108470A9089 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250313 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Storage -40 ... 70 °C | |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Resistance to Vibrations | 1 mm 2 - 13.2 Hz |
| 0.7g with Load 100% x Ie 13.2 - 100 Hz | |
| Resistance to Shock acc. to IEC 60068-2-27 | 5 g |
| 30 ms | |
| Environmental Information | 2CCY413207D0203 |
| Dimensions | |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 54 mm |
| Product Net Height | 142 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 490 g |
| Built-In Depth (t2) | 82.5 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 580 g |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CCC005084D0202 |
| Installation | |
| Instructions and Manuals | 2CCC413016M0008 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Mounting Position | Any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108468A9560 |
| 9AKK108468A9561 | |
| 9AKK108468A9562 | |
| External Classifications and Standards | |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| eClass | V11.0 : 27141901 |
| Object Classification Code | F |
| Standards | IEC/EN 60947-2 |
| UL 1077 | |
