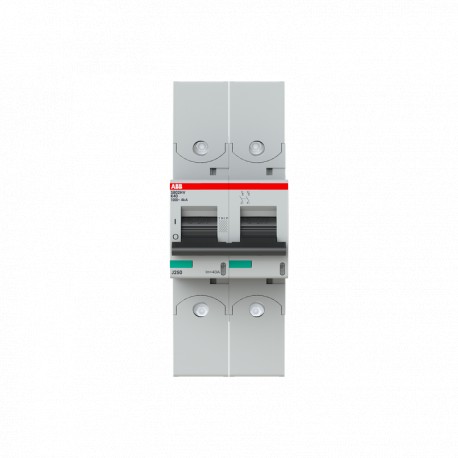

ABB 2CCF019027R0001 2CCF019027R0001 ABB Int.aut. S802HV-K40 2p 16A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCF019027R0001 ABB Int.aut. S802HV-K40 2p 16A

2CCF019027R0001

019027

ABB

1 Pcs.

Int.aut. S802HV-K40 2p 16A S802HV-K40 High Performance MCB

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 2CCF019027R0001 is a specialized industrial circuit breaker built to safeguard high-performance machinery and control panels from damaging fault conditions. This unit provides robust current interruption capabilities for demanding electrical configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Built-in depth (EF000218): 82.5 mm
  • Release characteristic (EF000889): K
  • Number of poles (total) (EF008618): 2
  • Number of protected poles (EF005548): 2
  • Rated current (EF000227): 40 A
  • Rated insulation voltage Ui (EF001366): 1000 V
  • Rated impulse withstand voltage Uimp (EF011980): 8 kV
  • Voltage type (EF000187): AC
  • Frequency (EF000416): 50 Hz
  • Current limiting class (EF002568): 3
  • Flush-mounted installation (EF007517): No
  • Concurrently switching neutral conductor (EF005997): No
  • Over voltage category (EF002569): 3
  • Pollution degree (EF002570): 2
  • Additional equipment possible (EF008148): Yes
  • Width in number of modular spacings (EF002950): 3

More info

▲
  • Extended Product Type:
    S802HV-K40
  • Product ID:
    2CCF019027R0001
  • EAN:
    7612271436766
  • Catalog Description:
    S802HV-K40 High Performance MCB
  • Long Description:
    The S802HV-K40 is a 2-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 40 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802HV-K40 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S802HV-K40 more comfortable. Due to the fast arc extinction of S802HV-K40 your application will be secured.

Technical

  • Standards:
    IEC/EN 60947-2
  • Number of Poles:
    2
  • Number of Protected Poles:
    2
  • Tripping Characteristic:
    K
  • Rated Current (In):
    40 A
  • Rated Operational Voltage:
    580/1000 V AC
  • Power Loss:
    7.4 W
    at Rated Operating Conditions per Pole 3.7 W
  • Rated Insulation Voltage (Ui):
    1000 V AC
  • Rated Frequency (f):
    50...60 Hz
  • Rated Short-Circuit Capacity (Icn):
    (400 V) 2.5 kA
    (230 V) 2.5 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (580 / 1000 V AC) 4 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (580 / 1000 V AC) 2.5 kA
  • Energy Limiting Class:
    3
  • Overvoltage Category:
    III
  • Pollution Degree:
    2
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Housing Material:
    Insulation group I, RAL 7035
  • Actuator Marking:
    I / O
  • Contact Position Indication:
    ON / OFF / TRIP
  • Degree of Protection:
    IP20
  • Remarks:
    Connection from top and bottom
    Connecting with CU only
    IP40 in enclosure with cover
    Cage terminal with captive screw
  • Terminal Type:
    Screw Terminals
  • Connecting Capacity:
    Rigid 0 ... 50 mm²
    Flexible 0 ... 70 mm²
  • Tightening Torque:
    3.5 N·m
  • Recommended Screw Driver:
    Pozidriv 2
  • Mounting on DIN Rail:
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Any
  • Built-In Depth (t2):
    82.5 mm

Environmental

  • Ambient Air Temperature:
    Operation -25...60 °C
  • Resistance to Shock acc. to IEC 60068-2-27:
    5 g
    30 ms
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    2 - 13.2 Hz / 1mm
    13.2 - 100Hz / 0.7g
    with load 100% x Ie
  • Environmental Conditions:
    Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle
    Damp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96%
    Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100%
    Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °C
    Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C
  • RoHS Status:
    Following EU Directive 2011/65/EU

Dimensions

  • Product Net Width:
    54mm
  • Product Net Depth / Length:
    82.5mm
  • Product Net Height:
    142mm
  • Product Net Weight:
    490g

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    152 mm
  • Package Level 1 Depth / Length:
    60 mm
  • Package Level 1 Height:
    99 mm
  • Package Level 1 Gross Weight:
    580 g
  • Package Level 1 EAN:
    7612271436766

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362020

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • Object Classification Code:
    F
  • ETIM 6:
    EC000042 - Miniature circuit breaker (MCB)
  • ETIM 7:
    EC000042 - Miniature circuit breaker (MCB)
