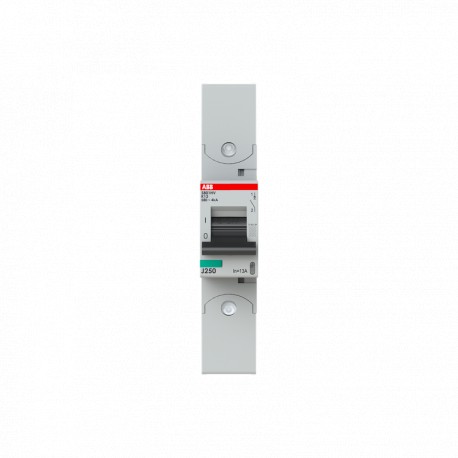

Int.aut. S801HV-K13 1p 13A S801HV-K13 High Performance MCB

Automation > Miniature circuit breaker (MCB)
Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb 2CCF019008R0001 int.aut. S801HV-K13 provides dependable circuit protection in demanding electrical distribution environments. It acts as an automatic switch to interrupt excessive currents during fault conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Built-in depth (EF000218): 82.5 mm
  • Release characteristic (EF000889): K
  • Number of poles (total) (EF008618): 1
  • Number of protected poles (EF005548): 1
  • Rated current (EF000227): 13 A
  • Rated insulation voltage Ui (EF001366): 1000 V
  • Rated impulse withstand voltage Uimp (EF011980): 8 kV
  • Voltage type (EF000187): AC
  • Frequency (EF000416): 50 Hz
  • Current limiting class (EF002568): 3
  • Flush-mounted installation (EF007517): No
  • Concurrently switching neutral conductor (EF005997): No
  • Over voltage category (EF002569): 3
  • Pollution degree (EF002570): 2
  • Additional equipment possible (EF008148): Yes
  • Width in number of modular spacings (EF002950): 1.5

More info

▲
  • Extended Product Type:
    S801HV-K13
  • Product ID:
    2CCF019008R0001
  • EAN:
    7612271436469
  • Catalog Description:
    S801HV-K13 High Performance MCB
  • Long Description:
    The S801HV-K13 is a 1-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 13 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801HV-K13 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S801HV-K13 more comfortable. Due to the fast arc extinction of S801HV-K13 your application will be secured.

Technical

  • Standards:
    IEC/EN 60947-2, UL 1077
  • Tripping Characteristic:
    K
  • Rated Voltage (Ur):
    acc. to IEC 60947-2 580/1000 V AC
    acc. to IEC 60947-2 580 V AC
  • Rated Operational Voltage:
    acc. to IEC 60947-2 580/1000 V AC
    acc. to IEC 60947-2 580 V AC
  • Rated Insulation Voltage (Ui):
    acc. to IEC/EN 60664-1 1000 V AC
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Input Voltage Type:
    AC
  • Rated Current (In):
    13 A
  • Rated Operational Current (Ie):
    13 A
  • Rated Short-Circuit Capacity:
    (400 V) 2.5 kA
    (230 V) 2.5 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (580 / 1000 V AC) 4 kA
    (230 V) 4 kA
    (400 V) 4 kA
  • Rated Conditional Short-Circuit Current (Inc):
    (230 V) 4 kA
    (400 V) 4 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (580 / 1000 V AC) 2.5 kA
  • Frequency (f):
    60...60 Hz
  • Rated Frequency (f):
    50...60 Hz
  • Power Loss:
    2 W
    at Rated Operating Conditions per Pole 2 W
  • Contact Position Indication:
    ON / OFF / TRIP
  • Energy Limiting Class:
    3
  • Number of Poles:
    1
  • Number of Protected Poles:
    1
  • Overvoltage Category:
    III
  • Tightening Torque:
    3.5 N·m
  • Release Type:
    K
  • Actuator Marking:
    I / O
  • Housing Material:
    Insulation group I, RAL 7035
  • Mounting on DIN Rail:
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Any
  • Recommended Screw Driver:
    Pozidriv 2
  • Accessories Available:
    Yes
  • Remarks:
    Connection from top and bottom
    Connecting with CU only
    IP40 in enclosure with cover
    Cage terminal with captive screw
  • Connecting Capacity:
    Flexible 0...50 mm²
    Rigid 0...70 mm²
  • Terminal Type:
    Screw Terminals

Environmental

  • Ambient Temperature:
    -25...60 °C
  • Ambient Air Temperature:
    Operation -25...60 °C
  • Degree of Protection:
    IP20
  • Pollution Degree:
    2
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    2 - 13.2 Hz / 1mm
    13.2 - 100Hz / 0.7g
    with load 100% x Ie
  • Resistance to Shock acc. to IEC 60068-2-27:
    5 g
    30 ms
  • RoHS Status:
    Following EU Directive 2011/65/EU
  • Environmental Information:
    2CCY413207D0203

Dimensions

  • Width in Number of Modular Spacings:
    1.5
  • Product Net Width:
    27mm
  • Product Net Height:
    142mm
  • Product Net Depth / Length:
    82.5mm
  • Product Net Weight:
    240g
  • Built-In Depth (t2):
    82.5 mm

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    152 mm
  • Package Level 1 Height:
    99 mm
  • Package Level 1 Depth / Length:
    33 mm
  • Package Level 1 Gross Weight:
    310 g
  • Package Level 1 EAN:
    7612271436469

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362010
  • Country of Origin:
    Switzerland (CH)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC000042 - Miniature circuit breaker (MCB)
  • ETIM 8:
    EC000042 - Miniature circuit breaker (MCB)
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    85362020
  • eClass:
    V11.0 : 27141901
  • Object Classification Code:
    F

Product Datasheet
