View larger
Images are for illustrative purposes only. Please refer to data sheet for details

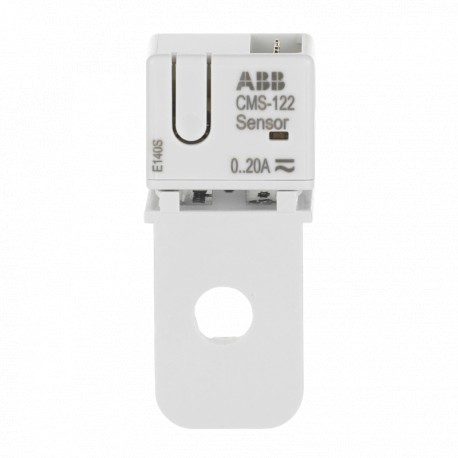

2CCA880227R0001 ABB CMS-122LA Sensor
2CCA880227R0001
880227
ABB
1 Pcs.
CMS-122LA Sensor
Automation > Current transformer
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108472A0172 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 74.32 % |
| Sustainable Material Content in Packaging (wt. %) | FSC Mix Cardboard - 72.29 % |
| FSC 100% Paper - 27.71 % | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| End Of Life Disassembling Instructions | 9AKK108470A1388 |
| Environmental Product Declaration - EPD | 9AKK108470A0920 |
| Technical | |
| Product Compatibility | SCU100 & SCU200 |
| Rated Primary Current (Ipn) | 20 A |
| Communication Interface | InSite bus(Flat cable) |
| Accuracy | 1% FS |
| Measuring Range | 0.1…20 A |
| Number of Inputs | Primary 1 |
| Sensor Type | Open-core (18 mm) |
| Electrical | |
| Frequency (f) | Rated Current 50 Hz |
| Power Consumption (@Pcons) | 0.18 W |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A6924 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20241024 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 70 °C |
| Environmental Information | 2CCC481001D0202 |
| Dimensions | |
| Product Net Width | 17.4 mm |
| Product Net Height | 38.9 mm |
| Product Net Depth / Length | 41 mm |
| Product Net Weight | 12 g |
| Bore Diameter | 10 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 83 g |
| E-Number (Finland) | 6719037 |
| E-Number (Norway) | 8027327 |
| E-Number (Switzerland) | 981913103 |
| Certificates and Declarations | |
| Declaration | CE |
| REACH | |
| RoHS | |
| Declaration of Conformity - CE | 2CCC005106D0201 |
| EU Data Act Compliance Declaration | Not applicable |
| Installation | |
| Instructions and Manuals | 9AKK106930A5216 |
| Mounting Type | Surface Mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC481003C0201 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| UNSPSC | 41111928 |
| eClass | V11.0 : 27210123 |
| Object Classification Code | P |
