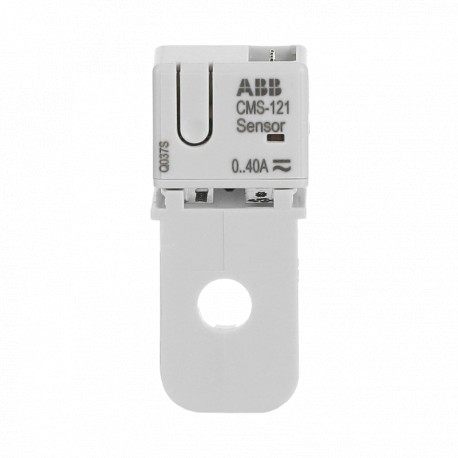

2CCA880226R0001 ABB CMS-121LA Sensor
2CCA880226R0001
880226
ABB
1 Pcs.
Automation > Current transformer
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Measure branch circuit currents precisely within modular power management systems using the Abb CMS-121LA sensor. Open-core sensors snap directly onto circuit breakers and conductors to track energy consumption and electrical parameters in distribution boards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: CMS-121LA
- Product ID: 2CCA880226R0001
- Catalog Description: CMS-121LA Sensor
- Long Description: CMS-121LA 18mm Open-core Sensor 40A
- Product Name: Sensor
- Frequency ( f ): Rated Current 50 Hz
- Power Consumption (@P cons ): atRatedLoad 0.18 W
- Accuracy: Current Accuracy ≤±1%F.S.
- Measuring Range: Initial Value - Current 0.1 A End Value - Current 40 A
- Mounting Type: Direct mounting
- Ambient Air Temperature: Operation -25 ... 70 °C
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Environmental Information: 2CCC481001D0202
- E-Number (Switzerland): 981913303
- Selling Unit of Measure: piece
- Instructions and Manuals: 9AKK106930A5216
More info
▲- Extended Product Type:
- CMS-121LA
- Product ID:
- 2CCA880226R0001
- EAN:
- 7612271498610
- Catalog Description:
- CMS-121LA Sensor
- Long Description:
- CMS-121LA 18mm Open-core Sensor 40A
Technical
- Product Name:
- Sensor
- Frequency (f):
- Rated Current 50 Hz
- Power Consumption (@Pcons):
- atRatedLoad 0.18 W
- Accuracy:
- Current Accuracy ≤±1%F.S.
- Measuring Range:
- Initial Value - Current 0.1 A
End Value - Current 40 A
- Mounting Type:
- Direct mounting
- Output:
- Other
Environmental
- Ambient Air Temperature:
- Operation -25 ... 70 °C
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Environmental Information:
- 2CCC481001D0202
Dimensions
- Product Net Width:
- 17.4mm
- Product Net Height:
- 38.9mm
- Product Net Depth / Length:
- 41mm
- Product Net Weight:
- 12g
- Product Net Length:
- 41 mm
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 130 mm
- Package Level 1 Height:
- 75 mm
- Package Level 1 Depth / Length:
- 230 mm
- Package Level 1 Gross Weight:
- 83 g
- Package Level 1 EAN:
- 7612271498610
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 90303900
- E-Number (Switzerland):
- 981913303
- Country of Origin:
- Japan (JP)
- Selling Unit of Measure:
- piece
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CCC481017D0201
- Environmental Information:
- 2CCC481001D0202
- Instructions and Manuals:
- 9AKK106930A5216
- RoHS Information:
- 2CCC413008D0206
Popular Downloads
- Data Sheet, Technical Information:
- 2CCC481003C0201
- Instructions and Manuals:
- 9AKK106930A5216
Classifications
- ETIM 6:
- EC002475 - Current value transformer
- ETIM 7:
- EC002475 - Current value transformer
- ETIM 8:
- EC002475 - Current value transformer
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 90303900
- Object Classification Code:
- P
