View larger
Images are for illustrative purposes only. Please refer to data sheet for details

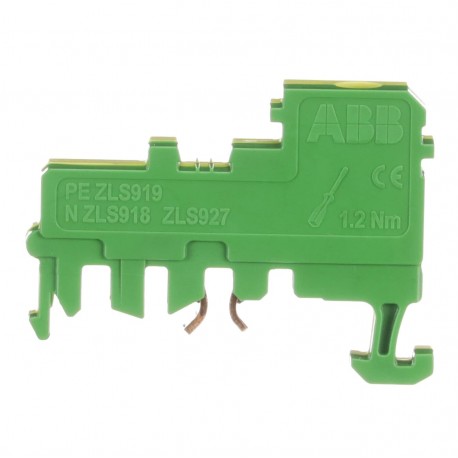

2CCA183441R0001 ABB ZLS919 PE Terminal 10mmq (1P 10pcs)
2CCA183441R0001
183441
ABB
1 Pcs.
ZLS919 PE Terminal 10mmq (1P=10pcs)
ZLS919 Busbar system accessory
Automation > Busbar
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | Suitable for SMISSLINE TP Plug in system additional socket |
| Suitable for Product Class | Suitable for SMISSLINE TP Plug in system additional socket |
| Model Number | Profile |
| Electrical | |
| Rated Current (In) | 32 A |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A9646 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20210407 |
| REACH Declaration | 9AKK108467A9561 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230417 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 9AKK108467A9561 |
| Dimensions | |
| Product Net Width | 9 mm |
| Product Net Height | 37 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Weight | 11 g |
| Dimension Diagram | 9AKK107492A6192 |
| Engineering | |
| EPLAN Data | 9AAF617140_EPLAN |
| Ordering | |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Gross Weight | 168 g |
| E-Number (Sweden) | 2101679 |
| E-Number (Switzerland) | 809997535 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A9646 |
| Installation | |
| Instructions and Manuals | 9AKK107680A2315 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6192 |
| External Classifications and Standards | |
| ETIM 9 | EC001522 - Busbar |
| ETIM 10 | EC001522 - Busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27370303 |
| Object Classification Code | F |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 32 A |
| Model (EF000010) | Profile |
| Length (EF001438) | 50 mm |
| Width (EF000008) | 9 mm |
| Height (EF000040) | 37 mm |
| Flexible (EF000083) | No |
