View larger
Images are for illustrative purposes only. Please refer to data sheet for details

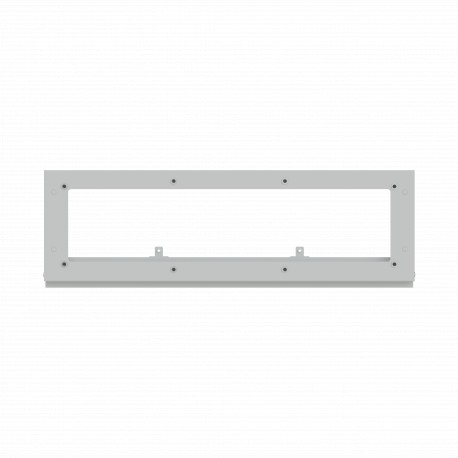

1SZE430802B0013 ABB SpEeL Open Roof/Base A400
1SZE430802B0013
430802
ABB
1 Pcs.
SpEeL Open Roof/Base A400
Top & Bottom, 50 mm x 384 mm x 250 mm
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Batteries | 0 |
| Design | |
| Surface Finishing | Powder coating |
| Material | Steel |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A9942 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231210 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20221108 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 50 mm |
| Product Net Depth / Length | 250 mm |
| Product Net Weight | 0.926 kg |
| Engineering | |
| Building Information Modeling – BIM | 9AKK107680A9002 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.007 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A9942 |
| Installation | |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC000744 - Top-/floor element (enclosure/cabinet) |
| ETIM 10 | EC000744 - Top-/floor element (enclosure/cabinet) |
| eClass | V11.0 : 27182405 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | Yes |
| Suitable for bottom planking (EF009585) | Yes |
| Width (EF000008) | 384 mm |
| Height (EF000040) | 50 mm |
| Depth (EF000049) | 250 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | No |
| Suitable for outdoor set-up (EF005774) | No |
| With cable entry (EF000325) | Yes |
