> ABB > Automation and Control enclosures > 430801

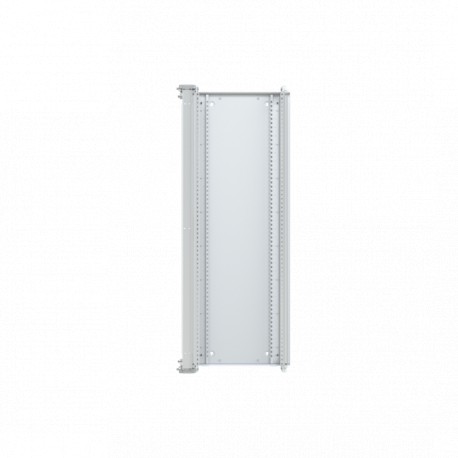

ABB 1SZE430801B0080 1SZE430801B0080 ABB SpEeL Ext: Bottom+Perf.Union A400 H2000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SZE430801B0080 ABB SpEeL Ext: Bottom+Perf.Union A400 H2000

1SZE430801B0080

430801

ABB

1 Pcs.

SpEeL Ext: Bottom+Perf.Union A400 H2000 SpEeL Ext: Fund+Perf.Union A400 H2000 Q843E420 Wall mounting & Floorstanding Basic System pro E energy L, housing up to IP43, 2000 mm x 384 mm x 250 mm

Automation > Side/back panel (switchgear cabinet)
Automation and Control enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    Q843E420
  • Product ID:
    1SZE430801B0080
  • EAN:
    5411815219405
  • Catalog Description:
    Q843E420 Wall mounting & Floorstanding Basic System pro E energy L, housing up to IP43, 2000 mm x 384 mm x 250 mm
  • Long Description:
    Floor standing cabinet Extention, Type System pro E energy L, Basic structure, Mountingtype: Wallhanging, for indoor installation, Flatpack, Protection form I (Earthed), Protectklass IP43 (with door) IP30, without door, Acc.Norm: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208, IK08 for housing, IK07 for glass-door and knock-out, powdercoated RAL 7035, Sheet steel material, Door needs to be added seperataly, Door can be mounted Left or Right, Door opening 135°, Backplate sheet steel, Top and Bottom need to be added sepretely, Cable entry by flange of big Cable entry, dimensions in mm (H x W x D) 2000 x 400 (384) x 250, No.Mod.DIN 156 (H=150 mm), prepared for extention side-by-side, prepared for interrior fitting System pro E energy Combi (up to 800A)

Technical

  • Material:
    Steel
  • RAL Number:
    RAL 7035 - Light Grey
  • Color:
    Grey
  • Number of Batteries:
    0

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions

  • Product Net Width:
    384mm
  • Product Net Height:
    2000mm
  • Product Net Depth / Length:
    250mm
  • Product Net Weight:
    25.934kg

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    391.000 mm
  • Package Level 1 Height:
    100.000 mm
  • Package Level 1 Depth / Length:
    2013.000 mm
  • Package Level 1 Gross Weight:
    28.189 kg
  • Package Level 1 EAN:
    5411815219405

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000
  • Country of Origin:
    Bulgaria (BG)

Certificates and Declarations (Document Number)

Popular Downloads

Classifications

  • ETIM 7:
    EC002524 - Side/back panel (switchgear cabinet)
  • ETIM 8:
    EC002524 - Side-/back panel (enclosure/cabinet)
  • WEEE Category:
    Product Not in WEEE Scope
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85381000
  • eClass:
    V11.0 : 27182101
  • Object Classification Code:
    U

ETIM for 1SZE430801B0080 Cabinets and enclosures (EC002524)
Feature Name Feature Value
Suitable as side panel (EF008287) No
Suitable as rear panel (EF008288) Yes
Width (EF000008) 384 mm
Height (EF000040) 2049 mm
Material (EF002169) Steel
Colour (EF000007) Grey
RAL-number (EF000116) 7035
With cable entry (EF000325) No
With lock (EF006306) No
