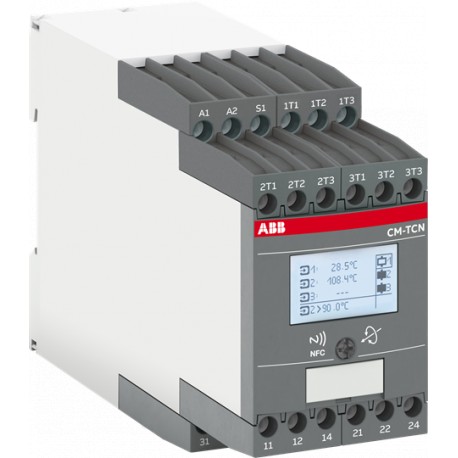

1SVR760740R0120 ABB RELE TEMP. 3 SENSORS Modbus-RTU Push-in
1SVR760740R0120
760740
ABB
1 Pcs.
Automation > Temperature monitoring relay
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB temperature monitoring relay, specifically part 1SVR760740R0120, safeguards industrial equipment by tracking thermal loads via multiple sensors and communicating system data over industrial networks like Modbus-RTU. These units prevent overheating in critical automation assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 4013614552663
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 2CDC112286C0201
- Instructions and Manuals: 1SVC750040M0000
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC159147_EPLAN
- Product Net Width: 45 mm
- Product Net Height: 85.6 mm
- Product Net Depth / Length: 103.7 mm
- Product Net Weight: 0.27 kg
- Function: Overtemperature monitoring
- Measuring Range: -200 ... 850 °C
- Sensor Type: PT100
- Rated Control Supply Voltage (U s ): 24 ... 240 V AC/DC
- Rated Frequency (f): Supply Circuit 50 Hz
More info
▲| Ordering | |
|---|---|
| EAN | 4013614552663 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC112286C0201 |
| Instructions and Manuals | 1SVC750040M0000 |
| 2CDC112285M0201 | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC159147_EPLAN |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.27 kg |
| Technical | |
| Function | Overtemperature monitoring |
| Undertemperature monitoring | |
| Over- and undertemperature monitoring | |
| Measuring Range | -200 ... 850 °C |
| Sensor Type | PT100 |
| PTC | |
| Bimetal Switch | |
| NTC | |
| PT1000 | |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Rated Frequency (f) | Supply Circuit 50 Hz |
| Supply Circuit 60 Hz | |
| Supply Circuit DC Hz | |
| Output | 3x 1 C/O Contact, Configurable |
| Terminal Type | Screwless Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V |
| 100 mA | |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kV |
| Output Circuit 1 / Output Circuit 2 4 kV | |
| Supply Circuit / Measuring Circuit 6 kV | |
| Supply Circuit / Output Circuit 6 kV | |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 600 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Supply Circuit / Measuring Circuit 600 V | |
| Supply Circuit / Output Circuit 600 V | |
| Degree of Protection | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm² |
| Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 2x 0.5 ... 1.5 mm² | |
| Wire Stripping Length | 8 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 2x 18-16 AWG |
| Rigid 2x 20-16 AWG | |
| Pilot Duty UL/CSA | B300 |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| ABB EcoSolutions | |
| Environmental Product Declaration - EPD | 1SAC200438H0001 |
| Certificates and Declarations | |
| CQC Certificate | CQC2018010303056014 |
| CSA Certificate | UL-CA-L140448-41-22600202-1 |
| Declaration of Conformity - CCC | 2020980303000208 |
| Declaration of Conformity - CE | 1SVD981067-00 |
| Declaration of Conformity - UKCA | 1SVD981067-10 |
| EU Data Act Compliance Declaration | 1SFC100125C0341 |
| UL Certificate | UL-US-L140448-11-22600202-1 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 52.5 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.299 kg |
| Package Level 1 EAN | 4013614552663 |
| External Classifications and Standards | |
| Object Classification Code | B |
| ETIM 7 | EC001446 - Temperature monitoring relay |
| ETIM 8 | EC001446 - Temperature monitoring relay |
| ETIM 9 | EC001446 - Temperature monitoring relay |
| eClass | V11.0 : 27371810 |
| UNSPSC | 39122331 |
| E-Number (Norway) | 4187799 |
