ABB 1SVR740740R0110 1SVR740740R0110 ABB Temperature relay 1 sensor 24-240VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR740740R0110 ABB Temperature relay 1 sensor 24-240VAC/DC

1SVR740740R0110

1SVR740740R0110

ABB

1 Pcs.

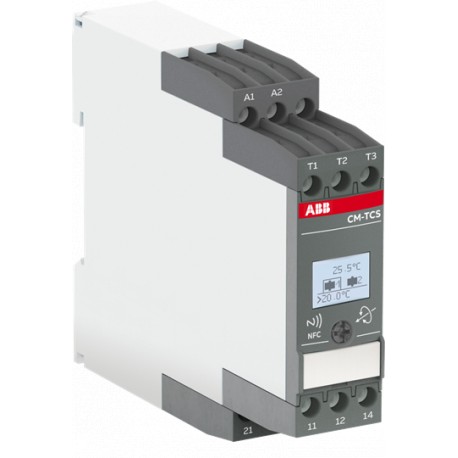

Temperature relay 1 sensor 24-240VAC/DC CM-TCS.011P Temp. monitoring relays LCD+NFC, -200..+850°C, 24-240VAC/DC

Automation > Temperature monitoring relay
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4013614552748
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC112286C0201
Instructions and Manuals1SVC730690M0000
1SAC200259M0001
EPLAN Data9AAC159147_EPLAN
Dimensions
Product Net Width22.5 mm
Product Net Height85.6 mm
Product Net Depth / Length103.7 mm
Product Net Weight0.141 kg
Technical
FunctionOvertemperature monitoring
Undertemperature monitoring
Over- and undertemperature monitoring
Measuring Range-200 ... 850 °C
Sensor TypePT100
PTC
Bimetal Switch
NTC
PT1000
Rated Control Supply Voltage (Us)24 ... 240 V AC/DC
Rated Frequency (f)Supply Circuit 50 Hz
Supply Circuit 60 Hz
Supply Circuit DC Hz
Output2x 1 C/O Contacts, Configurable
Terminal TypeScrewless Terminals
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Minimum Switching Capacity12 V
100 mA
Rated Impulse Withstand Voltage (Uimp)Measuring Circuit / Output Circuit 6 kV
Output Circuit 1 / Output Circuit 2 4 kV
Supply Circuit / Measuring Circuit 6 kV
Supply Circuit / Output Circuit 6 kV
Rated Insulation Voltage (Ui)Measuring Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V
Supply Circuit / Measuring Circuit 600 V
Supply Circuit / Output Circuit 600 V
Degree of ProtectionHousing IP50
Terminals IP20
Overvoltage CategoryIII
Pollution Degree2
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Electrical DurabilityAC-12 100000 cycle
Mechanical DurabilityNr. Operations 30000000 cycle
Connecting CapacityFlexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length8 mm
Mounting Position1 ... 6
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Technical UL/CSA
Maximum Operating Voltage UL/CSAOutput Circuit 300 V AC
Connecting Capacity UL/CSAFlexible 2x 18-16 AWG
Rigid 2x 20-16 AWG
Pilot Duty UL/CSAB300
Environmental
Ambient Air TemperatureOperation -25 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
SCIPfd214699-d329-4a2d-9bfa-6dc067b6b37b Germany
Simplified SCIP01ce45ce-e437-4d58-9333-ef81d4d90444 Germany
1033a407-38b3-43a5-b256-dcfc90fb8273 Portugal
1ecfbe68-1937-4095-87a7-8e29439f97a4 Netherlands
26a3e065-8d97-44d2-ab52-7ff5da698c9c Germany
2da11c3d-dc2d-4aa0-9b5d-ff653563ca1a Poland
3a9b7b08-44b5-4e7c-bd48-ccc5638cecae Belgium
3ebc644e-4df3-4b16-920e-ef67017c44c2 Estonia
47c108b6-a582-4891-9866-9751196c4da7 Sweden
48ea102f-ef5e-4944-a21d-b40783484a2f France
4a78a25f-7c87-424d-91e5-3c7269299221 Belgium
4ccf62ef-d013-40f1-baa2-cd62e34d0581 Greece
52af5348-68a7-4145-b2d0-f446e736ebd1 Denmark
55d7a729-f427-4d09-b67f-c9e53a809946 Italy
619ef4f9-8320-4614-b121-bf70f2481bc7 Czech Republic
63b95598-0644-4ed4-b80c-a73bf5f6ae70 Norway
82dcbbbc-cc53-4783-99af-d5ef004dbda1 Croatia
83c11751-e910-4ea3-9c53-69f28f66323c Germany
8d1449fe-cc0b-48e9-be6d-ea1ad123e7ef Poland
b0d272e4-3195-48d1-a4bb-e6f0adb91734 Finland
c2138c6a-b51d-4348-a495-fa92703a3116 France
cc126868-305a-4b0d-ae2b-748a3427bf98 Germany
de1cfcbe-3233-4511-b2f3-8cfae362db88 Bulgaria
e8efc253-8d8c-41f5-8478-8e9a2e7969e5 Spain
ef94202f-d8d0-4ba2-ab2e-2d77369bfdb1 Hungary
f4a468ae-4cd4-41f2-a76f-5904b9b5989c Hungary
fa67b7f0-781f-459a-a357-ffcf64367afe Poland
fb52b069-0c0f-42f0-9362-a0a513ebd984 Sweden
Toxic Substances Control Act - TSCA2CMT2023-006536
ABB EcoSolutions
Environmental Product Declaration - EPD1SAC200438H0001
Certificates and Declarations
CQC CertificateCQC2018010303056014
CSA CertificateUL-CA-L140448-41-22600202-2
Declaration of Conformity - CCC2020980303000208
Declaration of Conformity - CE1SVD981086-00
Declaration of Conformity - UKCA1SVD981086-10
EU Data Act Compliance Declaration1SFC100125C0342
UL CertificateUL-US-L140448-11-22600202-2
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width97 mm
Package Level 1 Depth / Length30 mm
Package Level 1 Height109 mm
Package Level 1 Gross Weight0.161 kg
Package Level 1 EAN4013614552748
External Classifications and Standards
Object Classification CodeB
ETIM 7EC001446 - Temperature monitoring relay
ETIM 8EC001446 - Temperature monitoring relay
ETIM 9EC001446 - Temperature monitoring relay
eClassV11.0 : 27371810
UNSPSC39122331

ETIM for 1SVR740740R0110 Relays (EC001446)
Feature Name Feature Value
Type of electric connection (EF003961) Spring clamp connection
With detachable clamps (EF003340) No
Number of measuring circuits (EF003425) 1
Error registration possible (EF003423) No
External reset possible (EF003426) No
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Temperature measuring range (EF009788) -200 °C
Width (EF000008) 22.5 mm
Height (EF000040) 85.6 mm
Depth (EF000049) 103.7 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
