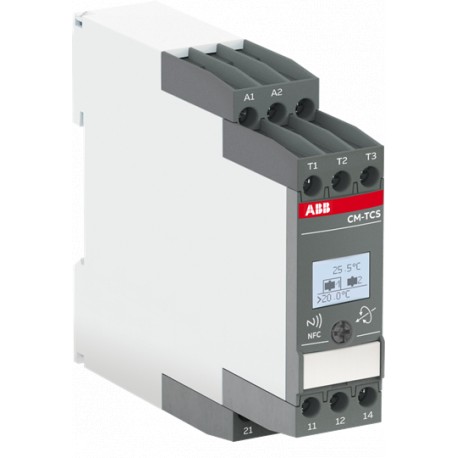

1SVR730740R0110 ABB Temperature relay 1 sensor 24-240VAC/DC
1SVR730740R0110
1SVR730740R0110
ABB
1 Pcs.
Automation > Temperature monitoring relay
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SVR730740R0110 ABB Temperature relay 1 sensor 24-240VAC/DC is a precision temperature relay engineered to oversee thermal conditions within motors, bearings, and critical manufacturing processes. By interfacing directly with thermal sensors, the device helps prevent costly thermal overloads by signaling control systems or cutting power when temperature parameters drift outside safe operating bands. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 4013614553110
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 2CDC112286C0201
- Instructions and Manuals: 1SVC730690M0000
- EPLAN Data: 9AAC159147_EPLAN
- Product Net Width: 22.5 mm
- Product Net Height: 85.6 mm
- Product Net Depth / Length: 103.7 mm
- Product Net Weight: 0.152 kg
- Function: Overtemperature monitoring
- Measuring Range: -200 ... 850 °C
- Sensor Type: PT100
- Rated Control Supply Voltage (U s ): 24 ... 240 V AC/DC
- Rated Frequency (f): Supply Circuit 50 Hz
- Output: 2x 1 C/O Contacts, Configurable
More info
▲| Ordering | |
|---|---|
| EAN | 4013614553110 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC112286C0201 |
| Instructions and Manuals | 1SVC730690M0000 |
| 1SAC200259M0001 | |
| EPLAN Data | 9AAC159147_EPLAN |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.152 kg |
| Technical | |
| Function | Overtemperature monitoring |
| Undertemperature monitoring | |
| Over- and undertemperature monitoring | |
| Measuring Range | -200 ... 850 °C |
| Sensor Type | PT100 |
| PTC | |
| Bimetal Switch | |
| NTC | |
| PT1000 | |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Rated Frequency (f) | Supply Circuit 50 Hz |
| Supply Circuit 60 Hz | |
| Supply Circuit DC Hz | |
| Output | 2x 1 C/O Contacts, Configurable |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V |
| 100 mA | |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kV |
| Output Circuit 1 / Output Circuit 2 4 kV | |
| Supply Circuit / Measuring Circuit 6 kV | |
| Supply Circuit / Output Circuit 6 kV | |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 600 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Supply Circuit / Measuring Circuit 600 V | |
| Supply Circuit / Output Circuit 600 V | |
| Degree of Protection | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm² |
| Flexible with Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible 1x 0.5 ... 2.5 mm² | |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 2.5 mm² | |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Recommended Screw Driver | 0.8 x 4 |
| 4.5 | |
| Pozidriv 1 | |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-14 AWG | |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| SCIP | 5fbfc823-5156-41cc-a66b-ffcc71c571f1 Germany |
| Simplified SCIP | 085cf001-619b-4975-8b67-e676aabb8f6b Finland |
| 12cbdee0-13dd-4317-bbe0-99bfb424b500 Sweden | |
| 2c9bcd68-81e8-4c75-9ec5-c7d83d8cfeb0 Portugal | |
| 3090eb5a-456e-4a39-b5a4-9105559bbd72 Bulgaria | |
| 348d4f53-6d54-407d-bc52-a6531aac43d7 Spain | |
| 3ac2c488-17f9-4869-9532-09cd91b0b2fd Germany | |
| 4501ac42-78aa-4ad7-9cf8-41e21d34bb9b Poland | |
| 54748d21-27a6-43e2-917c-c51a5b309d98 Norway | |
| 54eb770f-64ef-47c2-9e6c-0556e0ac3296 Hungary | |
| 5d110ea3-4eef-417e-a393-f22f26d82b7c Germany | |
| 67c64a43-ca57-4b83-b87d-2175ce2d53ae Germany | |
| 77ca5fa3-5119-4f9e-a505-ef54cc5a26a0 Germany | |
| 822cc916-cb2f-435d-ba1c-90be8aa29e8f Italy | |
| 890a4925-fe35-4f21-9790-43872c246606 Czech Republic | |
| 8c390854-3be2-4c02-9da9-b2a6a0dcf0d4 Denmark | |
| 942329d4-4714-4e7d-a995-16d6dc747e8d Estonia | |
| 94a1447c-277b-4048-bfae-7514ff4f2db6 Greece | |
| a0055166-1385-4f72-bc6a-346f8163b707 Croatia | |
| a29c3c45-941a-412a-a675-15a675baed0a Poland | |
| c50829b8-34a6-4362-a74c-b19015ba7f2c Poland | |
| c8bb8b8b-57ac-4574-a8d3-afb9c2f7368d France | |
| cd10422a-75af-433b-a200-36c203b96866 Netherlands | |
| db786b22-4909-4cae-9f78-f76d2e162c05 Belgium | |
| e0a9a4d8-4de0-405b-9fab-d84b35ea1d31 Belgium | |
| e2049f95-baa7-43d0-9b65-a96b9de8e049 Sweden | |
| edd565b1-2fe7-4712-8dfc-91c58785c34d France | |
| f9cb3fef-f83b-4586-b738-f66ceaeb9e53 Hungary | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| Environmental Product Declaration - EPD | 1SAC200438H0001 |
| Certificates and Declarations | |
| CQC Certificate | CQC2018010303056014 |
| CSA Certificate | UL-CA-L140448-41-22600202-2 |
| Declaration of Conformity - CCC | 2020980303000208 |
| Declaration of Conformity - CE | 1SVD981086-00 |
| Declaration of Conformity - UKCA | 1SVD981086-10 |
| EU Data Act Compliance Declaration | 1SFC100125C0342 |
| UL Certificate | UL-US-L140448-11-22600202-2 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.172 kg |
| Package Level 1 EAN | 4013614553110 |
| External Classifications and Standards | |
| Object Classification Code | B |
| ETIM 7 | EC001446 - Temperature monitoring relay |
| ETIM 8 | EC001446 - Temperature monitoring relay |
| ETIM 9 | EC001446 - Temperature monitoring relay |
| eClass | V11.0 : 27371810 |
| UNSPSC | 39122331 |
