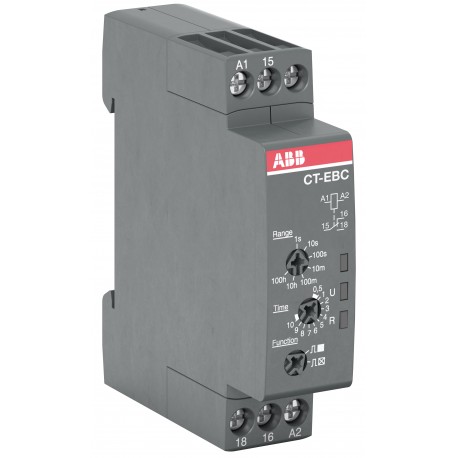

1SVR508150R0000 ABB Relay temp.interm.1c/o 24-48VDC/24-240VAC
1SVR508150R0000
508150
ABB
1 Pcs.
Automation > Timer relay
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for reliable circuit control, the Abb 1SVR508150R0000 timer relay manages flasher and pulsing operations within automated systems. Time relays are standard industrial components utilized to introduce calculated delays or cyclical switching actions into motor control and process automation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 4013614555671
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 2CDC110004C0210_01
- Instructions and Manuals: 1SVC500020M1001
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC405924_EPLAN
- Product Net Width: 17.5 mm
- Product Net Height: 70 mm
- Product Net Depth / Length: 63 mm
- Product Net Weight: 0.053 kg
- Timer Relay Type: Flasher Starting with OFF
- Time Range: 0.05 s ... 100 h
- Rated Control Supply Voltage (U s ): 24 ... 240 V AC
- Rated Operational Voltage: Auxiliary Circuit 250 V
- Rated Frequency (f): 50 / 60 Hz
More info
▲| Ordering | |
|---|---|
| EAN | 4013614555671 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_01 |
| Instructions and Manuals | 1SVC500020M1001 |
| 1SVC500020M0001 | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC405924_EPLAN |
| Dimensions | |
| Product Net Width | 17.5 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.053 kg |
| Technical | |
| Timer Relay Type | Flasher Starting with OFF |
| Flasher Starting with ON | |
| Time Range | 0.05 s ... 100 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC |
| 24 ... 48 V DC | |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Output | 1 C/O (SPDT) Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V |
| 100 mA | |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 1.5 mm² | |
| Tightening Torque | 0.5 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Pozidriv 1 | |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61812-1 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-16 AWG | |
| Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-2 |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +60 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CCC Certificate | CCC_2019010303150608 |
| CQC Certificate | CQC2019010303150608 |
| cULus Certificate | cULus_20031209-E140448 |
| Declaration of Conformity - CE | 1SVD981068 |
| Declaration of Conformity - UKCA | 1SVD981068-10 |
| DNV GL Certificate | DNV_GL_TAA00002TS |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 89 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 4013614555671 |
| Package Level 2 EAN | 4013614580468 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay |
| ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 |
| UNSPSC | 39121519 |
| E-Number (Finland) | 2712892 |
