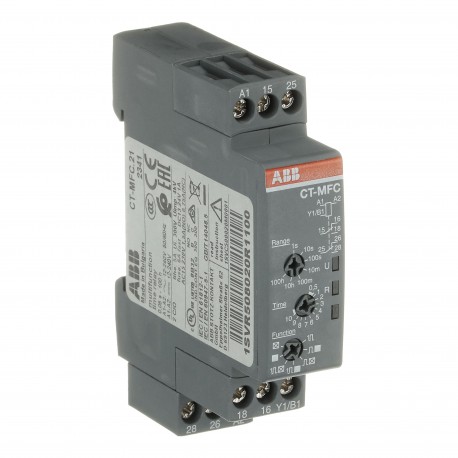

ABB 1SVR508020R1100 1SVR508020R1100 ABB CT-MFC.21 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR508020R1100 ABB CT-MFC.21

1SVR508020R1100

508020

ABB

1 Pcs.

CT-MFC.21 CT-MFC.21 Time relay, Multifunctional 2c/o, 12-240VAC/DC

Automation > Timer relay
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4013614534324
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_01
Instructions and Manuals1SVC500020M1001
1SVC500020M0001
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC405924_EPLAN
Dimensions
Product Net Width17.5 mm
Product Net Height80 mm
Product Net Depth / Length63 mm
Product Net Weight0.066 kg
Technical
Timer Relay TypeON-Delay
OFF-Delay
Impulse ON
Impulse OFF
Flasher Starting with ON
Flasher Starting with OFF
Pulse Former
Time Range0.05 s ... 100 h
Rated Control Supply Voltage (Us)12 ... 240 V AC/DC
Rated Operational VoltageAuxiliary Circuit 250 V
Rated Frequency (f)50 / 60 Hz
DC
Output2 C/O Contacts
Terminal TypeScrew Terminals
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current DC-13 (Ie)(24 V) 1 A
Minimum Switching Capacity12 V
100 mA
Rated Impulse Withstand Voltage (Uimp)Input Circuit 4 kV
Rated Insulation Voltage (Ui)Input Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V
Degree of ProtectionHousing IP50
Terminals IP20
Overvoltage CategoryIII
Pollution Degree3
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 6 A
Connecting CapacityFlexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 1.5 mm²
Tightening Torque0.5 ... 0.8 N·m
Wire Stripping Length7 mm
Recommended Screw Driver0.8 x 4
Pozidriv 1
Mounting Position1 ... 6
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC 61812-1
UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSAOutput Circuit 300 V AC
Contact Rating UL/CSA(NO:) B300
(NC:) C300
Connecting Capacity UL/CSAFlexible 1x 18-14 AWG
Flexible 2x 18-16 AWG
Rigid 1x 20-12 AWG
Rigid 2x 20-16 AWG
Tightening Torque UL/CSA4.43 ... 7.08 in·lb
Pilot Duty UL/CSANC B300
NO C300
Flammability According to UL94V-2
Environmental
Ambient Air TemperatureOperation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
Toxic Substances Control Act - TSCA2CMT2023-006536
Certificates and Declarations
CCC CertificateCCC_2019010303150608
CQC CertificateCQC2019010303150608
cULus CertificatecULus_20031209-E140448
Declaration of Conformity - CCC2020980303000209
Declaration of Conformity - CE1SVD981068
Declaration of Conformity - UKCA1SVD981068-10
DNV GL CertificateDNV_GL_TAA00002TS
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width89 mm
Package Level 1 Depth / Length20 mm
Package Level 1 Height65 mm
Package Level 1 Gross Weight0.079 kg
Package Level 1 EAN4013614534324
Package Level 2 EAN4013614580437
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001439 - Timer relay
ETIM 8EC001439 - Timer relay
ETIM 9EC001439 - Timer relay
eClassV11.0 : 27371605
UNSPSC39122329
E-Number (Finland)2712826
E-Number (Norway)4189317
E-Number (Sweden)4030217

ETIM for 1SVR508020R1100 Relays (EC001439)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Function delay-on energization (EF003374) Yes
Function delay on de-energization (EF003401) Yes
Function floating contact on energization (EF003378) Yes
Function floating contact on de-energization (EF003402) Yes
Function star-delta (EF003380) No
Function pulse shaping (EF003403) Yes
Function flashing, starting with pause, fixed time (EF003363) Yes
Function flashing, starting with pulse, fixed time (EF003364) Yes
Clock function, starting with pause, variable (EF003365) No
Clock function, starting with pulse, variable (EF003366) No
Remote operation possible (EF003361) No
Suitable as remote control (EF003362) No
Pluggable on auxiliary contact block (EF006952) No
Rated control supply voltage AC 50 Hz (EF003978) 12 V
Rated control supply voltage AC 60 Hz (EF003979) 12 V
Rated control supply voltage DC (EF003980) 12 V
Voltage type for actuating (EF008242) AC/DC
Nominal current (EF000001) 4 A
Time range (EF003384) 0.05 s
Number of outputs, undelayed, normally closed contact (EF006835) 0
Number of outputs, undelayed, normally open contact (EF006836) 0
Number of outputs, undelayed, change-over contact (EF006837) 2
Number of outputs, delayed, normally closed contact (EF006838) 0
Number of outputs, delayed, normally open contact (EF006839) 0
Number of outputs, delayed, change-over contact (EF006840) 2
Outputs, reversible delayed/undelayed (EF006988) No
With semiconductor output (EF003373) No
Suitable for DIN rail (top hat rail) mounting (EF007250) Yes
Width (EF000008) 17.5 mm
Height (EF000040) 80 mm
Depth (EF000049) 63 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
