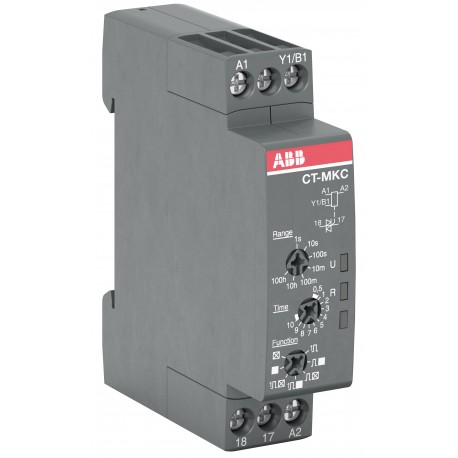

1SVR508010R1300 ABB Multifunctional temp.relay 12-240VAC/DC
1SVR508010R1300
508010
ABB
1 Pcs.
Multifunctional temp.relay 12-240VAC/DC
CT-MKC.31 Time relay, Multifunctional solid-state, 12-240VAC/DC
Automation > Timer relay
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SVR508010R1300 is a multifunctional timing and monitoring relay designed to alternate switching operations in cyclical industrial applications. Flasher relays are commonly applied in warning light circuits, intermittent pump controls, and recurring process cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 4013614555626
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 2CDC110004C0210_01
- Instructions and Manuals: 1SVC500020M1001
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC405924_EPLAN
- Product Net Width: 17.5 mm
- Product Net Height: 70 mm
- Product Net Depth / Length: 63 mm
- Product Net Weight: 0.053 kg
- Timer Relay Type: Flasher Starting with OFF
- Time Range: 0.05 s ... 100 h
- Rated Control Supply Voltage (U s ): 12 ... 240 V AC/DC
- Rated Operational Voltage: Auxiliary Circuit 250 V
- Rated Frequency (f): 50 / 60 Hz
More info
▲| Ordering | |
|---|---|
| EAN | 4013614555626 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_01 |
| Instructions and Manuals | 1SVC500020M1001 |
| 1SVC500020M0001 | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC405924_EPLAN |
| Dimensions | |
| Product Net Width | 17.5 mm |
| Product Net Height | 70 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.053 kg |
| Technical | |
| Timer Relay Type | Flasher Starting with OFF |
| Flasher Starting with ON | |
| Impulse OFF | |
| Impulse ON | |
| OFF-Delay | |
| ON-Delay | |
| Pulse Former | |
| Time Range | 0.05 s ... 100 h |
| Rated Control Supply Voltage (Us) | 12 ... 240 V AC/DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz |
| DC | |
| Output | Solid-State |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 1 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 0.2 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 1 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 1.5 mm² | |
| Tightening Torque | 0.5 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Pozidriv 1 | |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61812-1 | |
| UL 60947-5-1 | |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-16 AWG | |
| Tightening Torque UL/CSA | 4.43 ... 7.08 in·lb |
| Flammability According to UL94 | V-2 |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +60 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| SCIP | f76cf63a-cf5f-4cbe-8e7c-8464385d68b4 Germany |
| Simplified SCIP | 06d52cca-07e8-4843-ba4a-03b7d2e11d7c Germany |
| 1e05673f-896f-42d5-b20a-f0051a53ff63 Belgium | |
| 23418e32-0e12-4f34-941a-68480653db04 Germany | |
| 291819ff-8411-46f0-b230-8406273b2284 Hungary | |
| 3ad6bbcc-61b4-4afa-ac05-62676d1d5895 Croatia | |
| 48b655ff-4883-41e4-a683-068498cf1ed1 Hungary | |
| 48d9d0ae-71b1-418f-8124-e28a0d37088d Portugal | |
| 4d380e22-b907-43df-ac49-fe75e1084ffc Greece | |
| 8c51bf89-756e-4bf5-8093-d02602b4992e Poland | |
| 8ef4725c-5786-4f41-87b0-aefe77247bc1 France | |
| 9f8be636-b608-463b-85fe-2ee623371501 Netherlands | |
| a4ef6ffd-20a6-4ef1-8376-9a0165480906 Germany | |
| a74911b1-7752-4911-a27c-790d7502543b France | |
| b3363491-8e5d-40e2-b74f-499fb3dabdaf Denmark | |
| b3d68678-c317-45f6-9d4b-c79c6f5ca53a Belgium | |
| b86788f4-5048-4ce9-b03f-c04da83bf69e Norway | |
| bc9f8d7a-f0b0-499f-ae79-bc3e1e647162 Bulgaria | |
| bdc706fb-9557-4d11-85b6-a4dd5a80f478 Spain | |
| c5183471-42e7-498f-bd08-306821836994 Sweden | |
| c6933d30-a632-40ce-a3dd-6104980d77ec Sweden | |
| c7b67daa-c816-4e4f-8b05-95a15ebeea20 Poland | |
| cb192b23-583d-49e8-bfeb-4bd8d5ded7f8 Finland | |
| dbad125b-aeb4-43d3-8789-3d8f372feafc Italy | |
| df11ddeb-8c94-4a81-9f6f-32769662f6d5 Czech Republic | |
| e419fab5-d588-448e-b8a6-aef3d2d9a48b Poland | |
| e4e8998c-a4db-4886-a143-90d50f4bb703 Germany | |
| e9677c38-57a9-45eb-a666-fde2c4fac72f Estonia | |
