View larger
Images are for illustrative purposes only. Please refer to data sheet for details

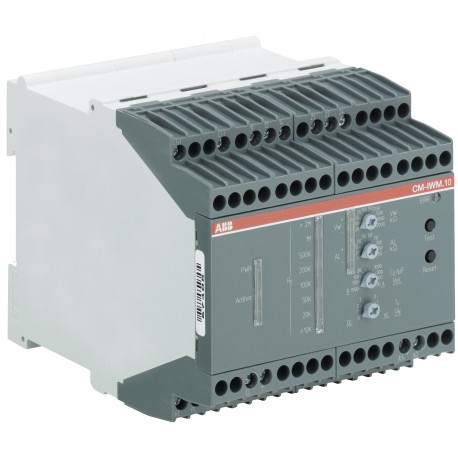

1SVR470670R1100 ABB CM-IWM.11Isolation Control Relay1500VDC
1SVR470670R1100
470670
ABB
1 Pcs.
CM-IWM.11Isolation Control Relay1500VDC
CM-IWM.11Relé Control Isolation1500VDC
CM-IWM.11 Insulation monitoring relay 2c/o, 1-250kOhm,0.02-20MOhm, 24VDC
Automation > Insulation and earth fault monitoring relay
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| EAN | 4013614515323 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC112243D0201 |
| Instructions and Manuals | 1SVC470510M0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 0.5 kg |
| Technical | |
| Function | Unearthed mixed AC / DC systems |
| Up to 1500 V DC | |
| Up to 1100 V AC | |
| Unearthed AC systems | |
| Unearthed DC systems | |
| Measuring Range | 20 ... 2000 kΩ |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Frequency (f) | Measuring Circuit 16 ... 1000 Hz |
| Measuring Circuit DC Hz | |
| Supply Circuit DC | |
| Output | 2 c/o (SPDT) contacts |
| Terminal Type | Screw Terminals |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 8 kV |
| Supply Circuit / Measuring Circuit 8 kV | |
| Supply Circuit / Output Circuit 8 kV | |
| Degree of Protection | Housing IP20 |
| Pollution Degree | 2 |
| System Leakage Capacitance (CE) | 3000 µF |
| Connecting Capacity | Flexible with Insulated Ferrule 1x 2.5 mm² |
| Flexible with Insulated Ferrule 2x 1.5 mm² | |
| Rigid 1x 4 mm² | |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Standards | IEC/EN 63000 |
| IEC/EN 61557-8 | |
| Environmental | |
| Ambient Air Temperature | Storage -40 ... +70 °C |
| Maximum Operating Altitude Permissible | Without Derating 4000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations | |
| cUL Certificate | cULus60947_E140448-20211215 |
| Declaration of Conformity - CE | 1SVD981048-00 |
| Declaration of Conformity - UKCA | 1SVD981048-10 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| Package Level 1 Depth / Length | 126 mm |
| Package Level 1 Height | 145 mm |
| Package Level 1 Gross Weight | 0.62 kg |
| Package Level 1 EAN | 4013614515323 |
| External Classifications and Standards | |
| ETIM 7 | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 8 | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 9 | EC001444 - Insulation and earth fault monitoring relay |
| eClass | V11.0 : 27371807 |
| E-Number (Finland) | 2712549 |
