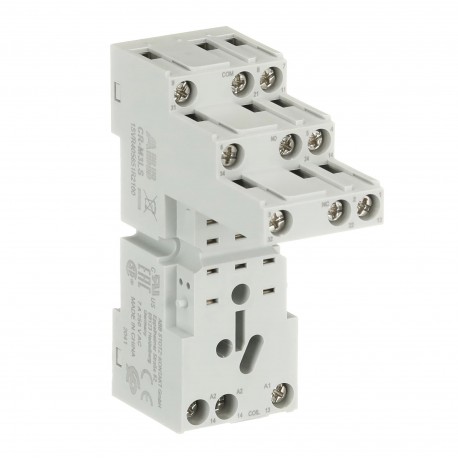

ABB 1SVR405651R3300 1SVR405651R3300 ABB CR-M4SF View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR405651R3300 ABB CR-M4SF

1SVR405651R3300

405651

ABB

1 Pcs.

CR-M4SF CR-M4SF Standard socket, fork type for 2c/o or 4c/o CR-M relay

Automation > Relay socket
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

1SVR405651R3300 Abb CR-M4SF is an accessory socket intended to securely house miniature interface relays in industrial control systems and electrical distribution boards. Relay sockets provide a reliable interface between control logic and field devices, allowing for quick relay replacement without rewiring the enclosure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 4013614528705
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85366990
  • Data Sheet, Technical Information: 2CDC110004C0210_05
  • Instructions and Manuals: 1SVC405650M9000
  • CAD Dimensional Drawing: 2CDC001079B0201
  • EPLAN Data: 9AAC132577_EPLAN
  • Product Net Width: 22.5 mm
  • Product Net Height: 61 mm
  • Product Net Depth / Length: 82 mm
  • Product Net Weight: 0.048 kg
  • Function: Accessory for interface relays CR-M
  • Sub-Function: Socket for miniature relays
  • Sub-Function 2: Standard socket for miniature relay 2 c/o or 4 c/o
  • Rated Operational Voltage: 250 V
  • Terminal Type: Fork

More info

▲
Ordering
EAN4013614528705
Minimum Order Quantity10 piece
Customs Tariff Number85366990
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_05
Instructions and Manuals1SVC405650M9000
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC132577_EPLAN
Dimensions
Product Net Width22.5 mm
Product Net Height61 mm
Product Net Depth / Length82 mm
Product Net Weight0.048 kg
Technical
FunctionAccessory for interface relays CR-M
Sub-FunctionSocket for miniature relays
Sub-Function 2Standard socket for miniature relay 2 c/o or 4 c/o
Rated Operational Voltage250 V
Terminal TypeFork
Screw Terminals
Rated Operational Current AC-12 (Ie)(230 V) 7 A
Rated Insulation Voltage (Ui)4 V
Mounting Position1
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61984
UL 508
Technical UL/CSA
Connecting Capacity Main Circuit UL/CSAFlexible with Ferrule 2x 20-16 AWG
Rigid 2x 20-14 AWG
Stranded 2 x 20-14 AWG
Flammability According to UL94V-0
Environmental
Ambient Air TemperatureOperation -40 ... +70 °C
Storage -40 ... +70 °C
Maximum Operating Altitude Permissible2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006536
Certificates and Declarations
CSA CertificateCSA_262671_2785566
cURus CertificatecURus508_E244328
Declaration of Conformity - CE1SVD982020-0001
Declaration of Conformity - UKCA1SVD982020-1000
EAC CertificateEAC_RU_C-DE.ME77.B.00446-19
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width151 mm
Package Level 1 Depth / Length71 mm
Package Level 1 Height66 mm
Package Level 1 Gross Weight0.482 kg
Package Level 1 EAN4013614385230
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001456 - Relay socket
ETIM 8EC001456 - Relay socket
ETIM 9EC001456 - Relay socket
eClassV11.0 : 27371603
UNSPSC39122335
