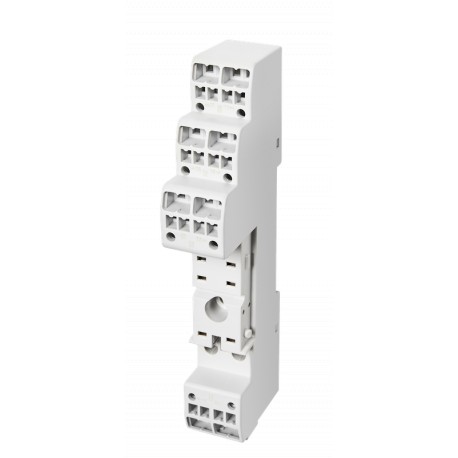

1SVR405650R0310 ABB Base for 1 or 2 Push-in contacts
1SVR405650R0310
1SVR405650R0310
ABB
10 Pcs.
Automation > Relay socket
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SVR405650R0310 ABB Base for 1 or 2 Push-in contacts is a compact relay socket engineered to house PCB-style interface relays, establishing dependable electrical contact between printed circuits and terminal wiring. Sockets streamline dense panel layouts and support efficient system servicing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 4053546062113
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85366990
- Data Sheet, Technical Information: 2CDC110004C0210_05
- Instructions and Manuals: 1SVC405650M9040
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 15.8 mm
- Product Net Height: 98.4 mm
- Product Net Depth / Length: 42.5 mm
- Product Net Weight: 0.036 kg
- Function: Accessory for interface relays CR-P
- Sub-Function: Socket for PCB relays
- Sub-Function 2: Standard socket for pcb relay 1 c/o or 2 c/o
- Rated Operational Voltage: 250 V
- Output Signal: 250 V / 10 A
- Terminal Type: Push-in Spring Terminals
More info
▲| Ordering | |
|---|---|
| EAN | 4053546062113 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85366990 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 1SVC405650M9040 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 15.8 mm |
| Product Net Height | 98.4 mm |
| Product Net Depth / Length | 42.5 mm |
| Product Net Weight | 0.036 kg |
| Technical | |
| Function | Accessory for interface relays CR-P |
| Sub-Function | Socket for PCB relays |
| Sub-Function 2 | Standard socket for pcb relay 1 c/o or 2 c/o |
| Rated Operational Voltage | 250 V |
| Output Signal | 250 V / 10 A |
| Terminal Type | Push-in Spring Terminals |
| Rated Insulation Voltage (Ui) | 2000 V |
| Wire Stripping Length | 10 mm |
| Recommended Screw Driver | 2.5 |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61984 | |
| UL 508 | |
| Technical UL/CSA | |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-17 AWG |
| Rigid 2x 20-16 AWG | |
| Stranded 2 x 20-16 AWG | |
| Flammability According to UL94 | V-0 |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -40 ... +70 °C | |
| Maximum Operating Altitude Permissible | 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CSA Certificate | CSA_262671_2785566 |
| cURus Certificate | cURus508_E244328 |
| Declaration of Conformity - CE | 1SVD982020-0001 |
| Declaration of Conformity - UKCA | 1SVD982020-1000 |
| Container Information | |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Width | 102 mm |
| Package Level 1 Depth / Length | 163 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.401 kg |
| Package Level 1 EAN | 4053546062120 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket |
| ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 |
| UNSPSC | 39122335 |
| E-Number (Norway) | 4187814 |
