ABB 1SVR405614R1100 1SVR405614R1100 ABB CR-M024DC4LD 4c/o pluggable interface relay, A1-A2 24VDC, 250V/6A, diode, LED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

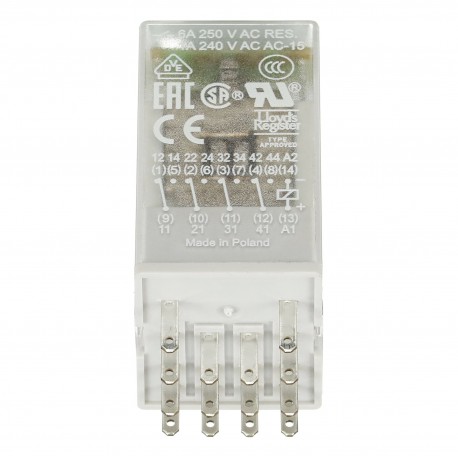

1SVR405614R1100 ABB CR-M024DC4LD 4c/o pluggable interface relay, A1-A2 24VDC, 250V/6A, diode, LED

1SVR405614R1100

405614

ABB

10 Pcs.

CR-M024DC4LD 4c/o pluggable interface relay, A1-A2=24VDC, 250V/6A, diode, LED CR-M024DC4LD Pluggable interface relay

Automation > Switching relay
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4013614497933
Minimum Order Quantity10 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_05
Instructions and Manuals1SVC405600M9000
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC132577_EPLAN
Dimensions
Product Net Width21.2 mm
Product Net Height35.6 mm
Product Net Depth / Length27.5 mm
Product Net Weight0.033 kg
Technical
FunctionPluggable miniature interface relay CR-M
Sub-FunctionRelay with built in LED and Diode
Rated Control Supply Voltage (Us)24 V DC
Rated Operational Voltage250 V AC
Output4 C/O (SPDT) Contacts
Output Signal250 V / 6 A
Terminal TypeFlat-Pin Connections
Rated Operational Current AC-12 (Ie)(230 V) 6 A
Rated Operational Current AC-15 (Ie)(120 V) 1.5 A
(230 V) 1 A
Rated Operational Current DC-12 (Ie)(24 V) 6 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
(250 V) 0.1 A
Rated Insulation Voltage (Ui)250 V
Degree of ProtectionIP40
Mounting Position1
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61810-1
UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA300 V AC
Pilot Duty UL/CSAB300
Flammability According to UL94HB
Environmental
Ambient Air TemperatureOperation -40 ... +70 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006536
Certificates and Declarations
CCC CertificateCCC_2014010303720193
CQC CertificateCQC2014010303720193
CSA CertificateCSA_2735700
cUR CertificatecUR_E244330
Declaration of Conformity - CCC2020980303000200
Declaration of Conformity - CE1SVD982021-0003
Declaration of Conformity - UKCA1SVD982021-1000
EAC CertificateEAC_RU_C-DE.ME77.B.00446-19
LR CertificateLR_05_20002_E5
RMRS CertificateRMRS_1740019250
UR CertificateUR_E244330
VDE CertificateVDE_40040327
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width114 mm
Package Level 1 Depth / Length50 mm
Package Level 1 Height61 mm
Package Level 1 Gross Weight0.35 kg
Package Level 1 EAN4013614383328
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001437 - Switching relay
ETIM 8EC001437 - Switching relay
ETIM 9EC001437 - Switching relay
eClassV11.0 : 27371601
UNSPSC39122331

ETIM for 1SVR405614R1100 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Flat plug-in connection
With detachable clamps (EF003340) No
Nominal current (EF000001) 6 A
Rated control supply voltage DC (EF003980) 24 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 4
With forced-guided contacts (EF003357) No
Type of switch contact (EF003358) Single contact
Complete with socket (EF003359) No
With LED indication (EF005950) Yes
Material of contact surface (EF004020) Other
Material contact (EF007544) Other
Degree of protection (IP) (EF005474) IP40
Width (EF000008) 21.2 mm
Height (EF000040) 35.6 mm
Depth (EF000049) 27.5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
