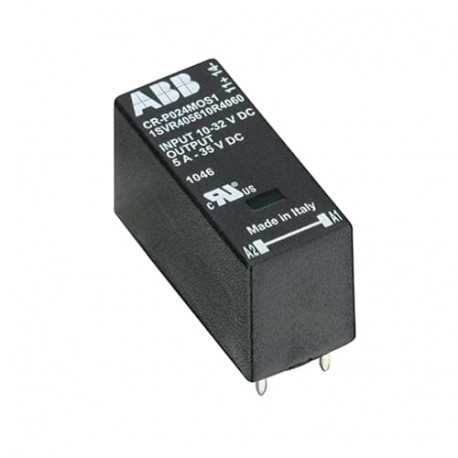

ABB 1SVR405610R4060 1SVR405610R4060 ABB CR-P024MOS1 PLUG-IN OPTOCOUPLER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR405610R4060 ABB CR-P024MOS1 PLUG-IN OPTOCOUPLER

1SVR405610R4060

405610

ABB

1 Pcs.

CR-P024MOS1 PLUG-IN OPTOCOUPLER CR-P024MOS1 Interface Opto Input= 24 V DC, Output= 5 A/24 V DC

Automation > Optocoupler
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SVR405610R4060 ABB CR-P024MOS1 PLUG-IN OPTOCOUPLER serves as a plug-in optocoupler used to couple control signals electrically while maintaining complete galvanic isolation between circuits. Optocouplers prevent high-voltage transients from damaging sensitive controller inputs, ensuring secure signal transmission throughout heavy industrial installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 4013614509421
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85369095
  • Data Sheet, Technical Information: 2CDC110004C0210_05
  • Instructions and Manuals: 1SVC405600M9000
  • CAD Dimensional Drawing: 2CDC001079B0201
  • EPLAN Data: 9AAC132576_EPLAN
  • Product Net Width: 12.7 mm
  • Product Net Height: 15.7 mm
  • Product Net Depth / Length: 29 mm
  • Product Net Weight: 0.011 kg
  • Function: Pluggable pcb optocoupler CR-P
  • Rated Control Supply Voltage (U s ): 10 ... 32 V DC
  • Output: MOSFET
  • Output Signal: 35VDC / 5A
  • Degree of Protection: IP67

More info

▲
Ordering
EAN4013614509421
Minimum Order Quantity10 piece
Customs Tariff Number85369095
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_05
Instructions and Manuals1SVC405600M9000
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC132576_EPLAN
Dimensions
Product Net Width12.7 mm
Product Net Height15.7 mm
Product Net Depth / Length29 mm
Product Net Weight0.011 kg
Technical
FunctionPluggable pcb optocoupler CR-P
Rated Control Supply Voltage (Us)10 ... 32 V DC
OutputMOSFET
Output Signal35VDC / 5A
Degree of ProtectionIP67
StandardsIEC/EN 62314
Environmental
Ambient Air TemperatureOperation -20 ... +50 °C
Storage -20 ... +70 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006536
Certificates and Declarations
cUR CertificatecUR_E244330
Declaration of Conformity - CE1SVD982057-0000
UR CertificateUR_E244330
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width316.7 mm
Package Level 1 Depth / Length15.3 mm
Package Level 1 Height23.4 mm
Package Level 1 Gross Weight0.13 kg
Package Level 1 EAN4013614509353
External Classifications and Standards
ETIM 7EC001504 - Optocoupler
ETIM 8EC001504 - Optocoupler
ETIM 9EC001504 - Optocoupler
eClassV11.0 : 27371604
UNSPSC32111705
