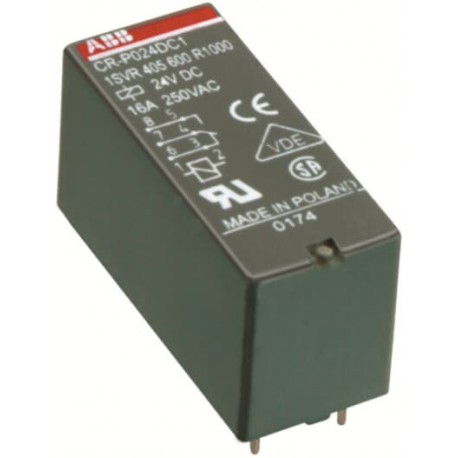

ABB 1SVR405606R1000 1SVR405606R1000 ABB CR-P024DC2G plug-in relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR405606R1000 ABB CR-P024DC2G plug-in relay

1SVR405606R1000

405606

ABB

1 Pcs.

CR-P024DC2G plug-in relay CR-P024DC2G Pluggable interface relay 2c/o,A1-A2=24VDC, 250V/8A, gold contacts

Automation > Switching relay
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4013614498329
Minimum Order Quantity10 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_05
Instructions and Manuals1SVC405600M9000
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC132576_EPLAN
Dimensions
Product Net Width12.7 mm
Product Net Height15.7 mm
Product Net Depth / Length29 mm
Product Net Weight0.014 kg
Technical
FunctionPluggable pcb interface relay CR-P
Sub-FunctionRelay with gold-plated contacts
Rated Control Supply Voltage (Us)24 V DC
Rated Operational Voltage400 V AC
Output2 c/o (SPDT) contacts
Output Signal250 V / 8 A
Terminal TypeSoldering Pins
Rated Operational Current AC-12 (Ie)(230 V) 8 A
Rated Operational Current AC-15 (Ie)(120 V) 3 A
(230 V) 1.5 A
Rated Operational Current DC-12 (Ie)(24 V) 8 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
(250 V) 0.1 A
Rated Insulation Voltage (Ui)400 V
Degree of ProtectionIP67
Mounting Position1
StandardsIEC/EN 61810-1
Technical UL/CSA
Maximum Operating Voltage UL/CSA300 V AC
Contact Rating UL/CSAB300
Pilot Duty UL/CSAB300
Flammability According to UL94V-0
Environmental
Ambient Air TemperatureOperation -40 ... +85 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Certificates and Declarations
cUR CertificatecUR_E244330
Declaration of Conformity - CCC2020970303000496
Declaration of Conformity - CE1SVD982031-0001
Declaration of Conformity - UKCA1SVD982031-1000
EAC CertificateEAC_RU_C-DE.ME77.B.00446-19
RMRS CertificateRMRS_1740019250
UR CertificateUR_E244330
VDE CertificateVDE_40019129
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width332 mm
Package Level 1 Depth / Length17 mm
Package Level 1 Height28 mm
Package Level 1 Gross Weight0.157 kg
Package Level 1 EAN4013614400919
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001437 - Switching relay
ETIM 8EC001437 - Switching relay
ETIM 9EC001437 - Switching relay
eClassV11.0 : 27371601
UNSPSC39122331
E-Number (Norway)4187726

ETIM for 1SVR405606R1000 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Soldering flag connection
With detachable clamps (EF003340) No
Nominal current (EF000001) 8 A
Rated control supply voltage DC (EF003980) 24 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
With forced-guided contacts (EF003357) No
Type of switch contact (EF003358) Single contact
Complete with socket (EF003359) No
With LED indication (EF005950) No
Material of contact surface (EF004020) Other
Material contact (EF007544) Other
Degree of protection (IP) (EF005474) IP67
Width (EF000008) 12.7 mm
Height (EF000040) 15.7 mm
Depth (EF000049) 29 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
