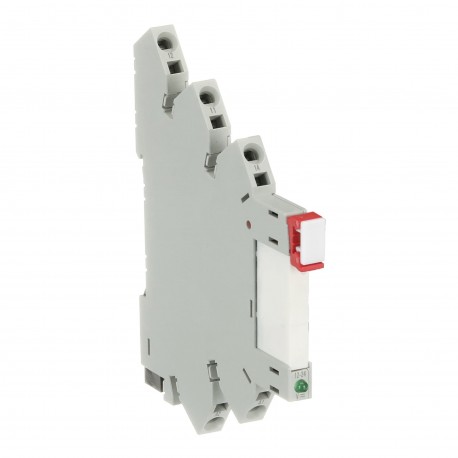

1SVR405541R3120 ABB Relay terminal CR-S024VADC1CRGS
1SVR405541R3120
405541
ABB
1 Pcs.
Automation > Switching relay
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb relay terminal, identified as 1SVR405541R3120, acts as an interface module to securely transfer control signals between electronic controllers and field devices in industrial setups. Interface relays protect sensitive control electronics by isolating them from higher power loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 4013614499296
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 2CDC110004C0210_05
- Instructions and Manuals: 2CDC117022D0201
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC179468_EPLAN
- Product Net Width: 6.3 mm
- Product Net Height: 76.4 mm
- Product Net Depth / Length: 88.5 mm
- Product Net Weight: 0.03 kg
- Function: Fully assembled interface relay CR-S
- Sub-Function: Relay with gold-plated contacts
- Rated Control Supply Voltage (U s ): 24 V AC/DC
- Output: 1 C/O (SPDT) Contact
- Output Signal: 250 V / 6 A
More info
▲| Ordering | |
|---|---|
| EAN | 4013614499296 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 2CDC117022D0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC179468_EPLAN |
| Dimensions | |
| Product Net Width | 6.3 mm |
| Product Net Height | 76.4 mm |
| Product Net Depth / Length | 88.5 mm |
| Product Net Weight | 0.03 kg |
| Technical | |
| Function | Fully assembled interface relay CR-S |
| Sub-Function | Relay with gold-plated contacts |
| Rated Control Supply Voltage (Us) | 24 V AC/DC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Degree of Protection | Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm² |
| Rigid 2.5 mm² | |
| Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61810-1 | |
| IEC/EN 61984 | |
| UL 508 | |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Flexible 14 AWG |
| Rigid 14 AWG | |
| Tightening Torque UL/CSA | 4.42 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage 0 ... +40 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Certificates and Declarations | |
| CSA Certificate | CSA_262671-2785865 |
| cURus Certificate | cURus508_E244328 |
| Declaration of Conformity - CE | 1SVD982017-0001 |
| Declaration of Conformity - UKCA | 1SVD982017-1000 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 93 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 81 mm |
| Package Level 1 Gross Weight | 0.32 kg |
| Package Level 1 EAN | 4013614486661 |
