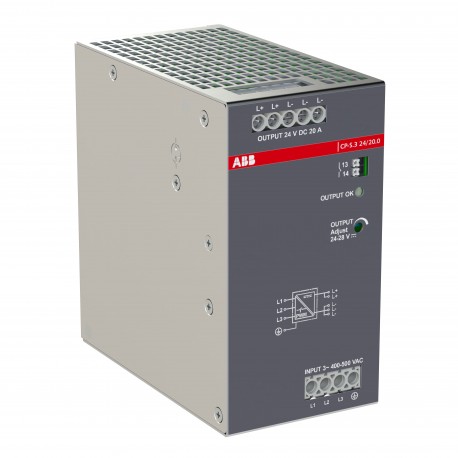

1SVR340767R1000 ABB CP-S.3 24/20.0 Power supply t
1SVR340767R1000
340767
ABB
1 Pcs.
CP-S.3 24/20.0 Power supply t
CP-S.3 24/20.0 Power supply In:3x400-500VAC Out:DC 24V/20A
Automation > DC-power supply
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SVR340767R1000 is a power supply unit utilized in industrial systems to deliver continuous electrical energy to automation hardware. These devices ensure robust performance for complex manufacturing processes and control loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85044095
- Data Sheet, Technical Information: 1SAC200439H0001
- Instructions and Manuals: 1SVC340560M0000
- Dimension Diagram: 2CDC271004V0021
- Wiring Diagram: 2CDC272014F0b04
- Product Net Width: 68 mm
- Product Net Height: 129.4 mm
- Product Net Depth / Length: 126.8 mm
- Product Net Weight: 1.27 kg
- Package Level 1 Width: 119 mm
- Package Level 1 Depth / Length: 158 mm
- Package Level 1 Height: 188 mm
- Package Level 1 Gross Weight: 1.52 kg
- Package Level 1 EAN: 4053546170245
- Package Level 1 Units: box 1 piece
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SAC200439H0001 |
| Instructions and Manuals | 1SVC340560M0000 |
| Dimension Diagram | 2CDC271004V0021 |
| Wiring Diagram | 2CDC272014F0b04 |
| Dimensions | |
| Product Net Width | 68 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 126.8 mm |
| Product Net Weight | 1.27 kg |
| Container Information | |
| Package Level 1 Width | 119 mm |
| Package Level 1 Depth / Length | 158 mm |
| Package Level 1 Height | 188 mm |
| Package Level 1 Gross Weight | 1.52 kg |
| Package Level 1 EAN | 4053546170245 |
| Package Level 1 Units | box 1 piece |
| Package Level 2 Width | 375 mm |
| Package Level 2 Depth / Length | 495 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 14.38 kg |
| Package Level 2 Units | carton 9 piece |
| Technical | |
| Function | Switch mode power supply |
| Number of Phases | 3-phase |
| Rated Input Voltage (UIN) | 3x 400 ... 500 V AC |
| Input Voltage (Uin) | 3 ~ 320 ... 575 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Rated Frequency Limits | 45 ... 66 Hz |
| Characteristic of Output | U/I characterisitc curve or Hiccup-mode selectable |
| Rated Output Power | 480 W |
| Output Power | 240 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Rated Output Current | 20 A |
| -25 °C ... +60 °C 20 A | |
| Output Current | 20 A |
| Output Current Maximum (Iout) | 30 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 8 kV |
| Input Circuit / PE 6 kV | |
| Input Circuit / Relay Contact 8 kV | |
| Output Circuit / PE 0.8 kV | |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 600 V |
| Input Circuit / PE 300 V | |
| Input Circuit / Relay Contact 600 V | |
| Output Circuit / PE 50 V | |
| Degree of Protection | Housing IP20 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² |
| Flexible 0.5 ... 4.0 mm² | |
| Rigid 0.5 ... 4 mm² | |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² |
| Flexible 0.5 ... 4.0 mm² | |
| Rigid 0.5 ... 4 mm² | |
| Tightening Torque | Input Circuit 0.79 N·m |
| Output Circuit 0.56 N·m | |
| Wire Stripping Length | 9 mm |
| Input Circuit 9 mm | |
| Output Circuit 9 mm | |
| Recommended Screw Driver | PH1 |
| 0.8 x 4 | |
| Input Circuit / Output Circuit PH1 | |
| Input Circuit / Output Circuit 0.8 x 4 | |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm |
| Other Device Same Type, Vertical 50 mm | |
| Mounting Position | 1 ... 5 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Standards | IEC/EN 61010-1 |
| IEC/EN 61010-2-201 | |
| CAN/CSA C22.2 No.61010-1 | |
| IEC/EN 61204-3 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-3 | |
| IEC/EN 61000-6-4 | |
| EN 55032 | |
| EN 55011 | |
| CAN/CSA C22.2 No.61010-2-201 | |
| Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Flexible 20-12 AWG | |
| Rigid 20-12 AWG | |
| Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-12 AWG |
| Flexible 20-12 AWG | |
| Rigid 20-12 AWG | |
| Tightening Torque UL/CSA | Input Circuit 7 in·lb |
| Output Circuit 5 in·lb | |
| Electromagnetic Compatibility | |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV |
| Level 4 Contact Discharge 8 kV | |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Ground 4 kV |
| Level 4 Line-to-Line 2 kV | |
| Electromagnetic Compatibility (EMC) | Immunity - Class B |
| Emission - Class B | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Maximum Operating Altitude Permissible | 5000 m |
| Without Derating 2000 m | |
| Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles |
| Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz |
| 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD982001-4501 |
| RoHS Declaration | 1SVD982001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006535 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | cULus61010-1_E174460 |
| cULus121201_E523399 | |
| Declaration of Conformity - CE | 1SVD982044 |
| External Classifications and Standards | |
| Object Classification Code | T |
| ETIM 9 | EC002540 - DC-power supply |
| ETIM 10 | EC002540 - DC-power supply |
| eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 |
| E-Number (Finland) | 2712913 |
| E-Number (Norway) | 6600770 |
