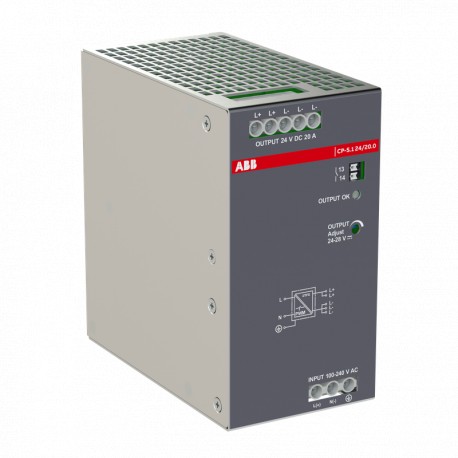

1SVR320761R1000 ABB CP-S.1 24/20.0 alim.24Vdc /20A source
1SVR320761R1000
320761
ABB
1 Pcs.
CP-S.1 24/20.0 alim.24Vdc /20A source
CP-S.1 24/20.0 Power supply In:100-240VAC/100-250VDC Out:DC 24V/20A
Automation > DC-power supply
Electronic relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
CP-S.1 24/20.0 alim.24Vdc /20A source 1SVR320761R1000 from Abb is a heavy-duty power supply unit engineered to support demanding industrial automation applications. High-capacity sources of this caliber are installed in main control cabinets to provide uninterrupted energy to extensive sensor networks and actuator arrays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85044095
- Data Sheet, Technical Information: 1SAC200140H0001
- Instructions and Manuals: 1SVC320360M0000
- Wiring Diagram: 9AKK107992A8774
- Product Net Width: 68 mm
- Product Net Height: 129.4 mm
- Product Net Depth / Length: 127 mm
- Product Net Weight: 1.355 kg
- Package Level 1 Width: 119 mm
- Package Level 1 Depth / Length: 158 mm
- Package Level 1 Height: 188 mm
- Package Level 1 Gross Weight: 1.6 kg
- Package Level 1 EAN: 4013614561122
- Package Level 1 Units: box 1 piece
- Package Level 2 Width: 375 mm
