> ABB > Electronic relays > 320361

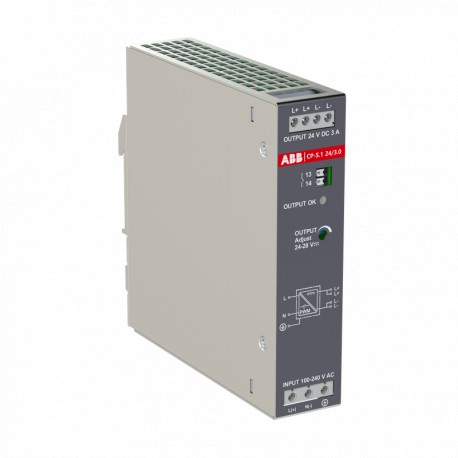

ABB 1SVR320361R1000 1SVR320361R1000 ABB CP-S.1 24/3.0 Power Supply.24Vdc/3A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR320361R1000 ABB CP-S.1 24/3.0 Power Supply.24Vdc/3A

1SVR320361R1000

320361

ABB

1 Pcs.

CP-S.1 24/3.0 Power Supply.24Vdc/3A CP-S.1 24/3.0 Power supply In:100-240VAC/100-250VDC Out:DC 24V/3A

Automation > DC-power supply
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85044095
Popular Downloads
Data Sheet, Technical Information1SAC200137H0001
Instructions and Manuals1SVC320360M0000
Wiring Diagram9AKK107992A8774
Dimensions
Product Net Width30.5 mm
Product Net Height129.4 mm
Product Net Depth / Length127 mm
Product Net Weight0.55 kg
Container Information
Package Level 1 Width64 mm
Package Level 1 Depth / Length155 mm
Package Level 1 Height169 mm
Package Level 1 Gross Weight0.67 kg
Package Level 1 EAN4013614561092
Package Level 1 Unitsbox 1 piece
Package Level 2 Width393 mm
Package Level 2 Depth / Length600 mm
Package Level 2 Height190 mm
Package Level 2 Gross Weight15 kg
Package Level 2 Unitscarton 21 piece
Technical
FunctionSwitch mode power supply
Number of Phases1-phase
Rated Input Voltage (UIN)100 ... 240 V AC
100 ... 250 V DC
Input Voltage (Uin)85 ... 264 V AC
90 ... 277 V DC
Typical Input Current(115 V AC) 1.38 A
(230 V AC) 0.95 A
Hold-up Time(230 V AC) min. 20 ms
Rated Frequency (f)50 / 60 Hz
DC
Rated Frequency Limits45 ... 65 Hz
Characteristic of OutputU/I characteristic curve with power reserve
Rated Output Power72 W
Output Power72 W
Rated Output Voltage24 V DC
Output Voltage (Uout)24 V DC
Output Current3 A
Output Current Maximum (Iout)4.5 A
Rated Impulse Withstand Voltage (Uimp)Input Circuit / Output Circuit 4 kV
Input Circuit / PE 4 kV
Input Circuit / Relay Contact 4 kV
Output Circuit / PE 0.8 kV
Output Circuit 0.8 kV
Rated Insulation Voltage (Ui)Input Circuit / Output Circuit 300 V
Input Circuit / PE 300 V
Input Circuit / Relay Contact 300 V
Output Circuit / PE 50 V
Degree of ProtectionHousing IP20
Terminals IP20
Pollution Degree2
Connecting Capacity Input CircuitFlexible with Ferrule 0.5 ... 2.5 mm²
Flexible 0.5 ... 2.5 mm²
Rigid 0.5 ... 2.5 mm²
Connecting Capacity Output CircuitFlexible with Ferrule 0.5 ... 2.5 mm²
Flexible 0.5 ... 2.5 mm²
Rigid 0.5 ... 2.5 mm²
Tightening TorqueInput Circuit 0.5 N·m
Output Circuit 0.5 N·m
Wire Stripping LengthAuxiliary Circuit 7 mm
Input Circuit 9 mm
Output Circuit 9 mm
Recommended Screw DriverPH1
Input Circuit / Output Circuit PH1
Input Circuit / Output Circuit 0.6 ... 3.5
Minimum Mounting DistanceOther Device Same Type, Horizontal 30 mm
Other Device Same Type, Vertical 50 mm
Mounting Position1
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Technical UL/CSA
Connecting Capacity Input Circuit UL/CSAFlexible with Ferrule 20-14 AWG
Flexible 20-14 AWG
Rigid 20-14 AWG
Connecting Capacity Output Circuit UL/CSAFlexible with Ferrule 20-14 AWG
Flexible 20-14 AWG
Rigid 20-14 AWG
Tightening Torque UL/CSAInput Circuit 4.4 in·lb
Output Circuit 4.4 in·lb
Electromagnetic Compatibility
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2Level 4 Air Discharge 15 kV
Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5Level 4 Line-to-Ground 4 kV
Level 4 Line-to-Line 2 kV
Electromagnetic Compatibility (EMC)Immunity - Class B
Emission - Class B
Environmental
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-2730g 3 shocks 6 ms
Resistance to Vibrations±0.15 mm 10 ... 58 Hz
10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD982001-4501
RoHS Declaration1SVD982001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPffb80980-78ff-4113-8238-005105f3a73d Germany
Simplified SCIP03d270df-e697-4b47-a073-c18bd10193c7 Norway
067c05f0-cdc8-4e65-b440-b74cdb02adec Belgium
13d37c82-6b0e-4ec1-911b-a77f00c09034 Poland
172c2153-de48-408b-a796-074c33cb7b1f Hungary
1aad0506-d4e5-4850-b62e-745466e319a3 Hungary
1ff49005-46ed-4d48-90a4-3049f906cd0a Germany
246eae51-7d2e-4be8-964e-f1c8c375ba0b Portugal
26ddca0c-f071-43eb-9065-9cb83d8e0b50 Czech Republic
32beaac8-3087-4b6b-88a7-6c649b6237a3 Italy
49bd54bb-000c-4333-a90d-4ca74005221d Denmark
4d8d8ba1-27df-47d5-9a4d-57d9dab0db19 Germany
58620321-8389-4374-a8e4-6ef1065d1120 Croatia
5cbe7ae0-45cc-43cb-be66-6499f6bb0bd3 Bulgaria
73bf490e-2d9e-4983-96d5-81117c1f39d1 Estonia
73e0ee21-16e7-4238-a67a-8b53369da0e6 Poland
8389c949-00de-4d7d-93e9-f9555b867226 Finland
9e88374c-f942-4c69-8ecc-0df49e2a4ec5 France
9ea27bce-bdbd-43aa-a0d5-d5c25ca6bc18 Belgium
a24571e7-caa1-4a03-af4c-6d24dd798b1f Poland
c8c549a2-d5a7-4e79-b501-ac909c6ad802 France
cf1c4a56-b65e-4046-8506-06720e3e8f11 Sweden
d79add17-080f-4bed-ad28-05484491d2e2 Germany
d8e77a8a-eab6-4c81-bd25-0da19f42d622 Sweden
e0e8c75b-e20c-4e5c-9a53-f96e4d8f3c06 Spain
ef181c61-2e36-4696-950d-88f30f05636c Greece
f3c5e99f-0b79-4df6-88be-4313b409eff2 Germany
f43d42c1-0c31-4a57-8b09-2cc56cccf9f9 Netherlands
Toxic Substances Control Act - TSCA2CMT2023-006535
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateCB_DE_2-029400
cULus CertificatecULus61010-1_E174460
cULus121201_E523399
Declaration of Conformity - CE1SVD982043-00
Declaration of Conformity - UKCA1SVD982043-10
DNV CertificateDNV_TAA0000300
SEMI Certificate9AKK108470A0202
External Classifications and Standards
Object Classification CodeT
ETIM 9EC002540 - DC-power supply
ETIM 10EC002540 - DC-power supply
eClassV11.0 : 27040701
UNSPSC39121004
E-Number (Finland)2712886
E-Number (Norway)6608900
E-Number (Sweden)5213654

ETIM for 1SVR320361R1000 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) AC/DC
1st secondary output voltage (EF006792) 24 V
2nd secondary output voltage (EF006797) 0 V
3rd secondary output voltage (EF006800) 0 V
Max. output current 1 (EF008284) 4.5 A
Max. output current 2 (EF008285) 0 A
Max. output current 3 (EF008286) 0 A
Secondary voltage adjustable (EF007002) No
Nominal value output voltage 1 (EF009393) 24 V
Nominal value output voltage 2 (EF009394) 0 V
Nominal value output voltage 3 (EF009395) 0 V
Nominal value output current 1 (EF009396) 3 A
Nominal value output current 2 (EF009397) 0 A
Nominal value output current 3 (EF009398) 0 A
Short-circuit-proof (EF007332) Yes
Rated supply voltage AC 50 Hz (EF007076) 264 V
Rated supply voltage AC 60 Hz (EF007077) 264 V
Rated supply voltage DC (EF007078) 277 V
Output voltage stabilized (EF003092) Yes
Power consumption (EF000346) 82 VA
Power output (EF003034) 72 W
Stabilized (EF005302) Yes
Type of electric connection (EF003961) Screw connection
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
Modular version (EF001126) No
Built-in width (EF000846) 30.5 mm
Built-in height (EF000332) 129.4 mm
Direct mounting possible (EF005689) No
Width (EF000008) 30.5 mm
Height (EF000040) 129.4 mm
Depth (EF000049) 127 mm
Suitable for safety functions (EF001597) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) 1
