View larger
Images are for illustrative purposes only. Please refer to data sheet for details

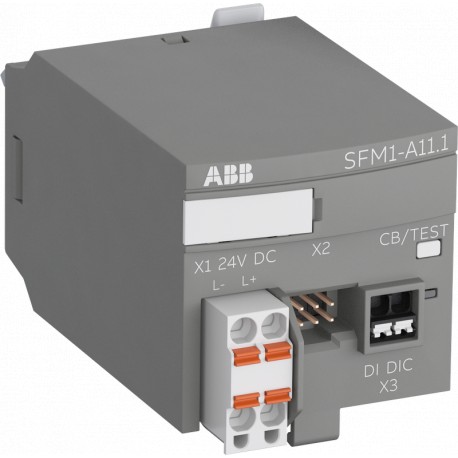

1SVM120012R0000 ABB SFM1 Module Advanced Features X2X
1SVM120012R0000
120012
ABB
1 Pcs.
SFM1 Module Advanced Features X2X
SFM1 Advanced Function Module with X2X
Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Popular Downloads | |
| EPLAN Data | 9AAF605146_EPLAN |
| Data Sheet, Technical Information | 2CDC100017M0201 |
| Instructions and Manuals | 1SVC120010M0000 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 43 mm |
| Product Net Height | 71 mm |
| Product Net Weight | 0.11 kg |
| Technical | |
| Standards | UL 60947-4-1 |
| UL 60947-1 | |
| Power Loss | Approximately 1.08 W |
| Degree of Protection | IP20 |
| Suitable For | AF09 - AF96 Contactors (24 V DC coil) |
| Product Name | Advanced Function Module |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Pollution Degree | 3 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | E48139 |
| Declaration of Conformity - CE | 1SVD981074-00 |
| UL Certificate | E48139 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 112 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Gross Weight | 0.14 kg |
| Package Level 1 EAN | 4053546041811 |
| External Classifications and Standards | |
| Object Classification Code | B |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121552 |
| IDEA Granular Category Code (IGCC) | 4775 >> Electrical control modules |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Communication and measuring function |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
