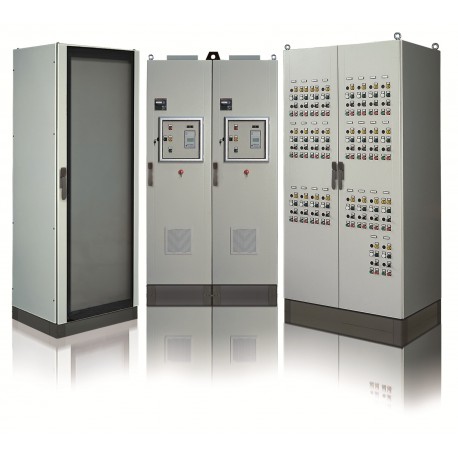

1STQ006249B0000 ABB IS2 Plac.mount 2000x800 for A1600,1ud
1STQ006249B0000
006249
ABB
1 Pcs.
Automation > Mounting plate for distribution board
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Large-scale structural mounting plates provide the heavy-duty backbone required for industrial automation and control enclosures housing extensive electrical switchgear. The ABB 1STQ006249B0000 is engineered for robust mechanical support within system pro E control frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: Automation and Control Enclosures (System pro E control) - IS2
- Suitable for Product Class: Automation and Control Enclosures (System pro E control)
- Accessory Type: 2. Mounting Plates
- Product Type: 5B5B30B320
- Options Provided: 5. Mounting plates for structure W=1600mm
- Material: Galvanized Steel sheet
- RoHS Declaration: 9AKK108470A5607
- RoHS Date: 20250108
- REACH Declaration: 9AKK108470A5605
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20250108
- WEEE Category: Product Not in WEEE Scope
- Environmental Information: 1STC804013D0208
- Product Net Width: 746 mm
- Product Net Height: 1874 mm
- Product Net Depth / Length: 27 mm
More info
▲| Technical | |
|---|---|
| Suitable For | Automation and Control Enclosures (System pro E control) - IS2 |
| Suitable for Product Class | Automation and Control Enclosures (System pro E control) |
| Accessory Type | 2. Mounting Plates |
| Product Type | 5B5B30B320 |
| Options Provided | 5. Mounting plates for structure W=1600mm |
| Design | |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0208 |
| Dimensions | |
| Product Net Width | 746 mm |
| Product Net Height | 1874 mm |
| Product Net Depth / Length | 27 mm |
| Product Net Weight | 31.5 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 2000 mm |
| Reference Width | 1600 mm |
| Ordering | |
| Package Level 1 Units | packet 1 piece |
| Package Level 1 Gross Weight | 31.5 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000213 - Mounting plate for distribution board |
| ETIM 10 | EC000213 - Mounting plate for distribution board |
| eClass | V11.1 : 27400639 |
| Object Classification Code | U |
