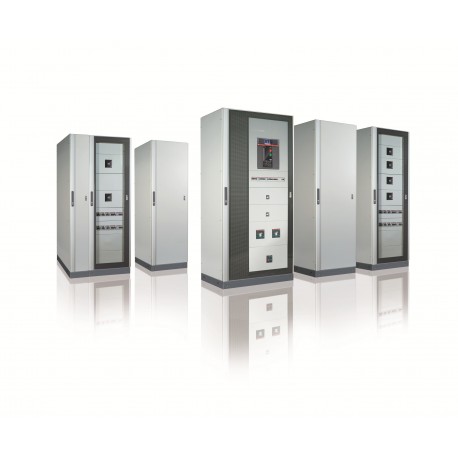

ABB 1STQ005575B0000 1STQ005575B0000 ABB Open Ceiling/Base IP30/40 A600 P1250 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1STQ005575B0000 ABB Open Ceiling/Base IP30/40 A600 P1250

1STQ005575B0000

005575

ABB

1 Pcs.

Open Ceiling/Base IP30/40 A600 P1250 OPEN TOP BOTTOM IP30/40 D1250 W600

Automation > Base/base element (switchgear cabinet)
Switchboards ArTu

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1STQ005575B0000 open ceiling and base configurations establish secure mounting platforms and structural boundaries for modular electrical enclosures. Enclosure base and top components are essential for maintaining ingress protection ratings and housing busbar systems in large distribution assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Sub-Function 3: Base Complete
  • Suitable For: Main Distribution Boards (System pro E power) - Top Busbar System Structure
  • Suitable for Product Class: Main Distribution Boards (System pro E power)
  • Product Type: 5P5P15P1510
  • Door Type: Single
  • Door Surface Finishing: Opaque
  • Remarks: ETIM
  • Material: Pickled steel sheet
  • RAL Number: RAL 7035 - Light Grey
  • RoHS Declaration: 1STE000077
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20231024
  • REACH Declaration: 1STE000078
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20241125
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658

More info

▲
Technical
Sub-Function 3Base Complete
Suitable ForMain Distribution Boards (System pro E power) - Top Busbar System Structure
Suitable for Product ClassMain Distribution Boards (System pro E power)
Product Type5P5P15P1510
Door TypeSingle
Door Surface FinishingOpaque
RemarksETIM
Design
MaterialPickled steel sheet
RAL NumberRAL 7035 - Light Grey
Material Compliance
RoHS Declaration1STE000077
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20231024
REACH Declaration1STE000078
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20241125
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Business
Environmental
Environmental Information1STC803005D0208
9AKK108467A6707
Dimensions
Product Net Width0.001 mm
Product Net Height20 mm
Product Net Depth / Length0.001 mm
Product Net Weight0.001 kg
Engineering
Building Information Modeling – BIM1STC860077
Ordering
Package Level 1 Units1 piece
Package Level 1 Gross Weight5.7 kg
Certificates and Declarations
Declaration of Conformity - CE1STC860111
Installation
Instructions and Manuals1STS100367R0001
Popular Downloads
Data Sheet, Technical Information1STC803005D0208
External Classifications and Standards
ETIM 9EC000721 - Base/base element (enclosure/cabinet)
ETIM 10EC000721 - Base/base element (enclosure/cabinet)
eClassV11.1 : 27182003
