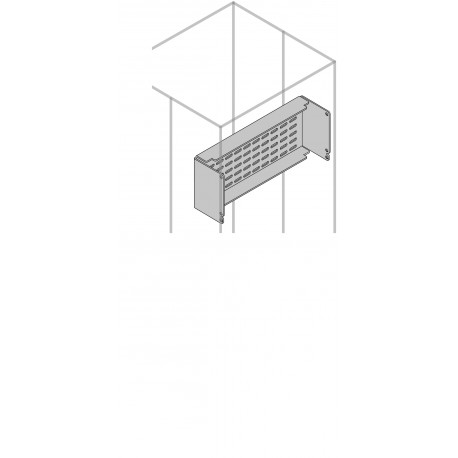

ABB 1STQ004228B0000 1STQ004228B0000 ABB Segregations blind cell, H 100, A 1250 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1STQ004228B0000 ABB Segregations blind cell, H 100, A 1250

1STQ004228B0000

004228

ABB

1 Pcs.

Segregations blind cell, H=100, A=1250 BLIND CELL H=100MM W=1250MM

Automation > Divider panel (switchgear cabinet)
Switchboards ArTu

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Segregations blind cells are installed within main distribution switchboards to blank off unused modular sections and maintain safe internal partitioning. This ABB part number 1STQ004228B0000 is constructed from pickled steel sheet for reliable industrial durability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable For: Modular boards - System pro E Power
  • Suitable for Product Class: Main Distribution Boards
  • Product Type: 5P5P20P2080
  • Remarks: ETIM
  • Material: Pickled steel sheet
  • RoHS Declaration: 1STE000077
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20231024
  • REACH Declaration: 1STE000078
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20241125
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • WEEE Category: Product Not in WEEE Scope
  • WEEE B2C / B2B: Business To Business
  • Environmental Information: 1STC803005D0208
  • Product Net Width: 1250 mm

More info

▲
Technical
Suitable ForModular boards - System pro E Power
Suitable for Product ClassMain Distribution Boards
Product Type5P5P20P2080
RemarksETIM
Design
MaterialPickled steel sheet
Material Compliance
RoHS Declaration1STE000077
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20231024
REACH Declaration1STE000078
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20241125
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Business
Environmental
Environmental Information1STC803005D0208
9AKK108467A6707
Dimensions
Product Net Width1250 mm
Product Net Height100 mm
Product Net Depth / Length100 mm
Product Net Weight3.395 kg
Engineering
Building Information Modeling – BIM1STC860077
Ordering
Package Level 1 Units1 piece
Package Level 1 Gross Weight2.5 kg
Certificates and Declarations
Declaration of Conformity - CE1STC860111
Installation
Instructions and Manuals1STS100415R0001
Instructions and Manuals (Part 2)1SDC007110G0902
Popular Downloads
Data Sheet, Technical Information1STC803005D0208
External Classifications and Standards
ETIM 9EC002525 - Divider panel (enclosure/cabinet)
ETIM 10EC002525 - Divider panel (enclosure/cabinet)
eClassV11.1 : 27182102

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
