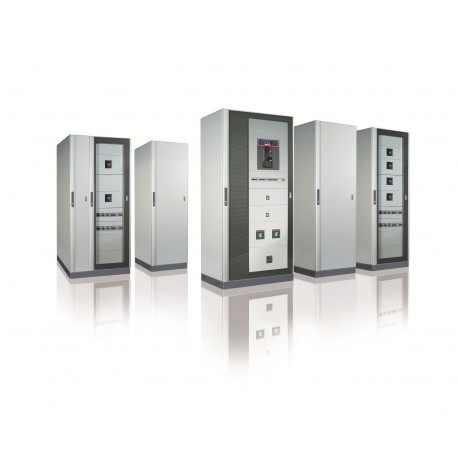

1STQ002352B0000 ABB Segr. vert.depth total width H 600 A 600
1STQ002352B0000
002352
ABB
1 Pcs.
Automation > Divider panel (switchgear cabinet)
Switchboards ArTu
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 1STQ002352B0000 is a vertical depth segregation panel built for main distribution switchboard configurations. Vertical segregation components are deployed inside large electrical enclosures to isolate busbars, separate functional tiers, and improve overall safety across modular power distribution systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: Modular boards - System pro E Power
- Suitable for Product Class: Main Distribution Boards
- Product Type: 5P5P20P2080
- Remarks: ETIM
- Material: Pickled steel sheet
- RoHS Declaration: 1STE000077
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20231024
- REACH Declaration: 1STE000078
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20241125
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- WEEE Category: Product Not in WEEE Scope
- WEEE B2C / B2B: Business To Business
- Environmental Information: 1STC803005D0208
- Product Net Width: 602 mm
More info
▲| Technical | |
|---|---|
| Suitable For | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Boards |
| Product Type | 5P5P20P2080 |
| Remarks | ETIM |
| Design | |
| Material | Pickled steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STE000077 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231024 |
| REACH Declaration | 1STE000078 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20241125 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 1STC803005D0208 |
| 9AKK108467A6707 | |
| Dimensions | |
| Product Net Width | 602 mm |
| Product Net Height | 598 mm |
| Product Net Depth / Length | 22 mm |
| Product Net Weight | 4.852 kg |
| Engineering | |
| Building Information Modeling – BIM | 1STC860077 |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 4.02 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860111 |
| Installation | |
| Instructions and Manuals | 1STS100413R0001 |
| 1STS100414R0001 | |
| Instructions and Manuals (Part 2) | 1SDC007110G0902 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC803005D0208 |
| External Classifications and Standards | |
| ETIM 9 | EC002525 - Divider panel (enclosure/cabinet) |
| ETIM 10 | EC002525 - Divider panel (enclosure/cabinet) |
| eClass | V11.1 : 27182102 |
