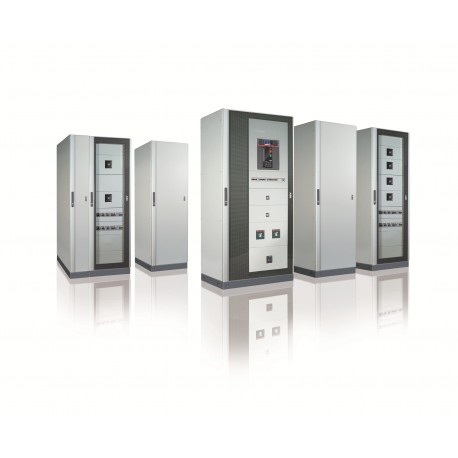

ABB 1STQ002350B0000 1STQ002350B0000 ABB Segr. vert.depth total width H 450 A 600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1STQ002350B0000 ABB Segr. vert.depth total width H 450 A 600

1STQ002350B0000

002350

ABB

1 Pcs.

Segr. vert.depth total width H=450 A=600 SEGR.VERT.REAR H=450MM W=600MM NO I.UP.

Automation > Divider panel (switchgear cabinet)
Switchboards ArTu

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB segr. vert.depth total width H 450 A 600 (part 1STQ002350B0000) creates vertical depth segregation inside modular power distribution boards to isolate functional zones.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable For: Modular boards - System pro E Power
  • Suitable for Product Class: Main Distribution Boards
  • Product Type: 5P5P20P2080
  • Remarks: ETIM
  • Material: Pickled steel sheet
  • RoHS Declaration: 1STE000077
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20231024
  • REACH Declaration: 1STE000078
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20241125
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • WEEE Category: Product Not in WEEE Scope
  • WEEE B2C / B2B: Business To Business
  • Environmental Information: 1STC803005D0208
  • Product Net Width: 602 mm

More info

▲
Technical
Suitable ForModular boards - System pro E Power
Suitable for Product ClassMain Distribution Boards
Product Type5P5P20P2080
RemarksETIM
Design
MaterialPickled steel sheet
Material Compliance
RoHS Declaration1STE000077
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20231024
REACH Declaration1STE000078
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20241125
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Business
Environmental
Environmental Information1STC803005D0208
9AKK108467A6707
Dimensions
Product Net Width602 mm
Product Net Height448 mm
Product Net Depth / Length22 mm
Product Net Weight3.6 kg
Engineering
Building Information Modeling – BIM1STC860077
Ordering
Package Level 1 Units1 piece
Package Level 1 Gross Weight4.02 kg
Certificates and Declarations
Declaration of Conformity - CE1STC860111
Installation
Instructions and Manuals1STS100413R0001
1STS100414R0001
Instructions and Manuals (Part 2)1SDC007110G0902
Popular Downloads
Data Sheet, Technical Information1STC803005D0208
External Classifications and Standards
ETIM 9EC002525 - Divider panel (enclosure/cabinet)
ETIM 10EC002525 - Divider panel (enclosure/cabinet)
eClassV11.1 : 27182102
