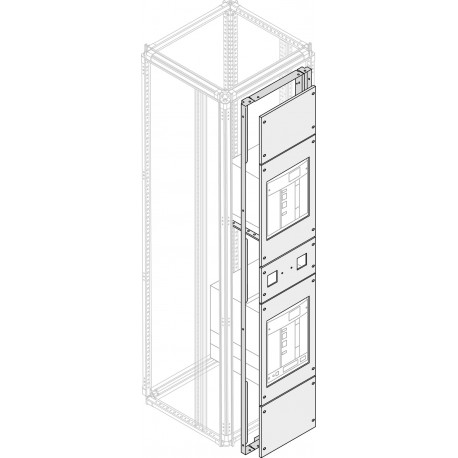

1STQ001574B0000 ABB Sec 3b bast reduc E2.2 F
1STQ001574B0000
1STQ001574B0000
ABB
1 Pcs.
Automation > Divider panel (switchgear cabinet)
Switchboards ArTu
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part 1STQ001574B0000 is a Sec 3b bast reduc E2.2 F designed for modular switchboards to facilitate internal separation and structural busbar integration for air circuit breakers. These reduction components ensure precise alignment and safety in heavy electrical assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: Modular boards - System pro E Power
- Suitable for Product Class: Main Distribution Boards
- Version: F;
- Product Type: 5P5P20P2080
- Sub-type: E2.2;
- Remarks: ETIM
- Material: Pickled steel sheet
- RoHS Declaration: 1STE000077
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20231024
- REACH Declaration: 1STE000078
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20241125
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- WEEE Category: Product Not in WEEE Scope
- WEEE B2C / B2B: Business To Business
More info
▲| Technical | |
|---|---|
| Suitable For | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Boards |
| Version | F; |
| Product Type | 5P5P20P2080 |
| Sub-type | E2.2; |
| Remarks | ETIM |
| Design | |
| Material | Pickled steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STE000077 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231024 |
| REACH Declaration | 1STE000078 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20241125 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 1STC803005D0208 |
| 9AKK108467A6707 | |
| Dimensions | |
| Product Net Width | 450 mm |
| Product Net Height | 25 mm |
| Product Net Depth / Length | 460 mm |
| Product Net Weight | 0.82 kg |
| Engineering | |
| Building Information Modeling – BIM | 1STC860077 |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 0.82 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860111 |
| Installation | |
| Instructions and Manuals | 1STM604200R0000 |
| Instructions and Manuals (Part 2) | 1SDC007110G0902 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC803005D0208 |
| External Classifications and Standards | |
| ETIM 9 | EC002525 - Divider panel (enclosure/cabinet) |
| ETIM 10 | EC002525 - Divider panel (enclosure/cabinet) |
| eClass | V11.1 : 27182102 |
