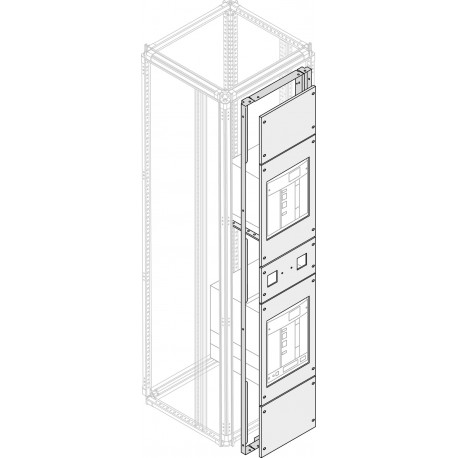

ABB 1STQ001572B0000 1STQ001572B0000 ABB Sec 3b reduc E1.2 W View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1STQ001572B0000 ABB Sec 3b reduc E1.2 W

1STQ001572B0000

1STQ001572B0000

ABB

1 Pcs.

Sec 3b reduc E1.2 W SEGR.HOR.F3B E1.2 3/4P V. 400X700MM

Automation > Divider panel (switchgear cabinet)
Switchboards ArTu

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 1STQ001572B0000 is a modular board reduction component built for System pro E Power main distribution switchboards. Such components allow engineers to adapt internal frame structures and maintain specified form-separation standards across multi-panel electrical installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable For: Modular boards - System pro E Power
  • Suitable for Product Class: Main Distribution Boards
  • Version: W;
  • Product Type: 5P5P20P2080
  • Sub-type: E1.2;
  • Remarks: ETIM
  • Material: Pickled steel sheet
  • RoHS Declaration: 1STE000077
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20231024
  • REACH Declaration: 1STE000078
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20241125
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • WEEE Category: Product Not in WEEE Scope
  • WEEE B2C / B2B: Business To Business

More info

▲
Technical
Suitable ForModular boards - System pro E Power
Suitable for Product ClassMain Distribution Boards
VersionW;
Product Type5P5P20P2080
Sub-typeE1.2;
RemarksETIM
Design
MaterialPickled steel sheet
Material Compliance
RoHS Declaration1STE000077
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20231024
REACH Declaration1STE000078
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20241125
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Business
Environmental
Environmental Information1STC803005D0208
9AKK108467A6707
Dimensions
Product Net Width450 mm
Product Net Height25 mm
Product Net Depth / Length460 mm
Product Net Weight0.79 kg
Engineering
Building Information Modeling – BIM1STC860077
Ordering
Package Level 1 Units1 piece
Package Level 1 Gross Weight0.79 kg
Certificates and Declarations
Declaration of Conformity - CE1STC860111
Installation
Instructions and Manuals1STS100414R0001
Instructions and Manuals (Part 2)1SDC007110G0902
Popular Downloads
Data Sheet, Technical Information1STC803005D0208
External Classifications and Standards
ETIM 9EC002525 - Divider panel (enclosure/cabinet)
ETIM 10EC002525 - Divider panel (enclosure/cabinet)
eClassV11.1 : 27182102
