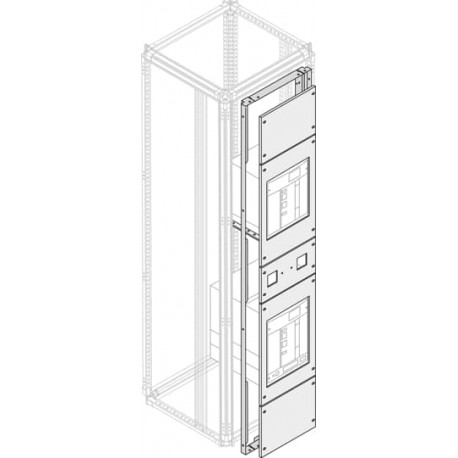

ABB 1STQ001566B0000 1STQ001566B0000 ABB Panel cieg recessed reduced frame View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1STQ001566B0000 ABB Panel cieg recessed reduced frame

1STQ001566B0000

001566

ABB

1 Pcs.

Panel cieg recessed reduced frame PPRR6040 Main Distribution Board

Automation > Door/operating panel (switchgear cabinet)
Switchboards ArTu

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

1STQ001566B0000 ABB Panel cieg recessed reduced frame is a main distribution board accessory designed to block off unused operational spaces within modular metal switchgear frameworks. Recessed blind panels maintain the structural integrity and ingress protection of heavy-duty industrial power distribution assemblies.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: PPRR6040
  • Product ID: 1STQ001566B0000
  • Catalog Description: PPRR6040 Main Distribution Board
  • Long Description: blind recessed panel h=600mm w=400mm
  • Suitable For: Modular boards - System pro E Power
  • Suitable for Product Class: Main Distribution Boards
  • Product Type: 5P5P20P2060
  • Door Type: Operator Panel
  • Door Surface Finishing: Opaque
  • Material: Pickled steel sheet
  • Remarks: ETIM
  • RAL Number: RAL 7035 - Light Grey
  • RoHS Status: No declaration needed
  • RoHS Information: 1STE000077
  • REACH Declaration: 1STE000078
  • Environmental Information: 1STC803005D0208 9AKK108467A6707

More info

▲
  • Extended Product Type:
    PPRR6040
  • Product ID:
    1STQ001566B0000
  • EAN:
    8015646810335
  • Catalog Description:
    PPRR6040 Main Distribution Board
  • Long Description:
    blind recessed panel h=600mm w=400mm

Technical

  • Suitable For:
    Modular boards - System pro E Power
  • Suitable for Product Class:
    Main Distribution Boards
  • Product Type:
    5P5P20P2060
  • Door Type:
    Operator Panel
  • Door Surface Finishing:
    Opaque
  • Material:
    Pickled steel sheet
  • Remarks:
    ETIM
  • RAL Number:
    RAL 7035 - Light Grey

Environmental

Dimensions

  • Product Net Width:
    400mm
  • Product Net Height:
    600mm
  • Product Net Depth / Length:
    400mm
  • Product Net Weight:
    4.379kg

Ordering

  • Minimum Order Quantity:
    1 piece
  • Package Level 1 Units:
    1 piece
  • Package Level 1 Gross Weight:
    5.02 kg
  • Customs Tariff Number:
    85381000
  • Country of Origin:
    Italy (IT)

Certificates and Declarations

Popular Downloads

Classifications

  • ETIM 8:
    EC000747 - Door/operating panel (enclosure/cabinet)
  • ETIM 9:
    EC000747 - Door/operating panel (enclosure/cabinet)
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    85381000
  • eClass:
    V11.1 : 27182204
