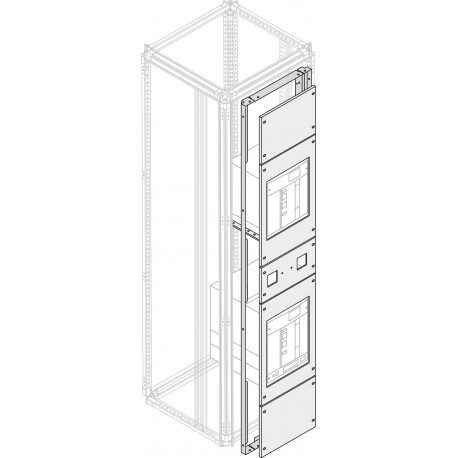

1STQ001565B0000 ABB Plc cieg mont encastr reduced frame
1STQ001565B0000
001565
ABB
1 Pcs.
Automation > Mounting plate for distribution board
Switchboards ArTu
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1STQ001565B0000 Plc cieg mont encastr reduced frame functions as a specialized structural accessory for modular distribution boards, helping to secure and frame internal components neatly within the enclosure framework. Framework and adapter elements of this type support precise alignment and structural integrity in heavy-duty electrical switchgear assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: Modular boards - System pro E Power
- Suitable for Product Class: Main Distribution Boards
- Product Type: 5P5P20P2070
- Remarks: ETIM
- Material: Galvanized Steel sheet
- RoHS Declaration: 1STE000077
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20231024
- REACH Declaration: 1STE000078
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20241125
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- WEEE Category: Product Not in WEEE Scope
- WEEE B2C / B2B: Business To Business
- Environmental Information: 1STC803005D0208
- Product Net Width: 400 mm
More info
▲| Technical | |
|---|---|
| Suitable For | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Boards |
| Product Type | 5P5P20P2070 |
| Remarks | ETIM |
| Design | |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STE000077 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231024 |
| REACH Declaration | 1STE000078 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20241125 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 1STC803005D0208 |
| 9AKK108467A6707 | |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 400 mm |
| Product Net Weight | 9.15 kg |
| Engineering | |
| Building Information Modeling – BIM | 1STC860077 |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 9.35 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860111 |
| Installation | |
| Instructions and Manuals | 1STM604200R0000 |
| Instructions and Manuals (Part 2) | 1SDC007110G0902 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC803005D0208 |
| External Classifications and Standards | |
| ETIM 9 | EC000213 - Mounting plate for distribution board |
| ETIM 10 | EC000213 - Mounting plate for distribution board |
| eClass | V11.1 : 27400639 |
