View larger
Images are for illustrative purposes only. Please refer to data sheet for details

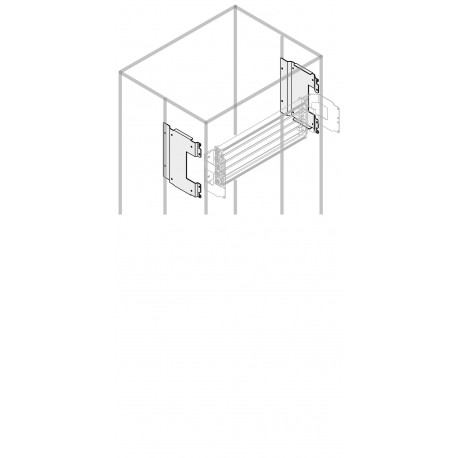

1STQ001333B0000 ABB Closures lat DIN+ sop fixation PSHS, 2 ud
1STQ001333B0000
1STQ001333B0000
ABB
1 Pcs.
Closures lat DIN+ sop fixation PSHS, 2 ud
SEGR.LAT.UNIFIX H H=300MM
Automation > Divider panel (switchgear cabinet)
Switchboards ArTu
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Boards |
| Product Type | 5P5P20P2080 |
| Remarks | ETIM |
| Design | |
| Material | Pickled steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STE000077 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231024 |
| REACH Declaration | 1STE000078 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20241125 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 1STC803005D0208 |
| 9AKK108467A6707 | |
| Dimensions | |
| Product Net Width | 230 mm |
| Product Net Height | 25 mm |
| Product Net Depth / Length | 300 mm |
| Product Net Weight | 1.7 kg |
| Engineering | |
| Building Information Modeling – BIM | 1STC860077 |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 1.7 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860111 |
| Installation | |
| Instructions and Manuals | 1STM604200R0000 |
| Instructions and Manuals (Part 2) | 1SDC007110G0902 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC803005D0208 |
| External Classifications and Standards | |
| ETIM 9 | EC002525 - Divider panel (enclosure/cabinet) |
| ETIM 10 | EC002525 - Divider panel (enclosure/cabinet) |
| eClass | V11.1 : 27182102 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 230 mm |
| Height (EF000040) | 25 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| With cable entry (EF000325) | No |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
