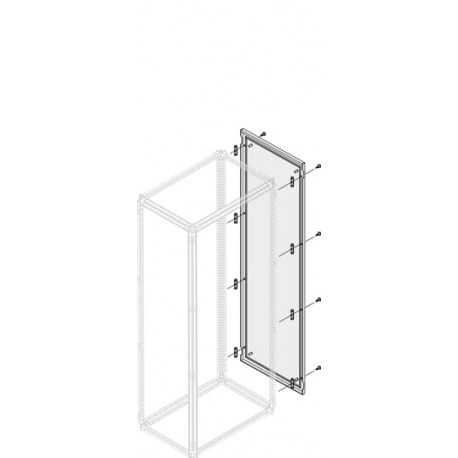

ABB 1STQ001261C0000 1STQ001261C0000 ABB IP40 LATERAL VENTI H1800 P900 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1STQ001261C0000 ABB IP40 LATERAL VENTI H1800 P900

1STQ001261C0000

1STQ001261C0000

ABB

1 Pcs.

IP40 LATERAL VENTI H1800 P900 IP40 AERATED EXT. PAN. H=1800 D=900

Automation > Side/back panel (switchgear cabinet)
Switchboards ArTu

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1STQ001261C0000 is a lateral ventilation component for modular distribution boards, designed to maintain proper airflow and temperature regulation inside large electrical switchgear assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable For: Modular boards - System pro E Power
  • Suitable for Product Class: Main Distribution Board
  • Product Type: 5P5P15P1520
  • RoHS Declaration: 1STE000077
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20231024
  • REACH Declaration: 1STE000078
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20241125
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • WEEE Category: Product Not in WEEE Scope
  • WEEE B2C / B2B: Business To Business
  • Environmental Information: 1STC803005D0208
  • Product Net Width: 900 mm
  • Product Net Height: 1800 mm
  • Product Net Depth / Length: 15 mm

More info

▲
Technical
Suitable ForModular boards - System pro E Power
Suitable for Product ClassMain Distribution Board
Product Type5P5P15P1520
Material Compliance
RoHS Declaration1STE000077
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20231024
REACH Declaration1STE000078
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20241125
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Business
Environmental
Environmental Information1STC803005D0208
9AKK108467A6707
Dimensions
Product Net Width900 mm
Product Net Height1800 mm
Product Net Depth / Length15 mm
Product Net Weight14.385 kg
Engineering
Building Information Modeling – BIM1STC860077
Ordering
Package Level 1 Unitspacket 1 piece
Package Level 1 Gross Weight17.125 kg
Certificates and Declarations
Installation
Instructions and Manuals1STS100387R0001
Popular Downloads
Data Sheet, Technical Information1STC803005D0208
External Classifications and Standards
ETIM 9EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 10EC002524 - Side-/back panel (enclosure/cabinet)
