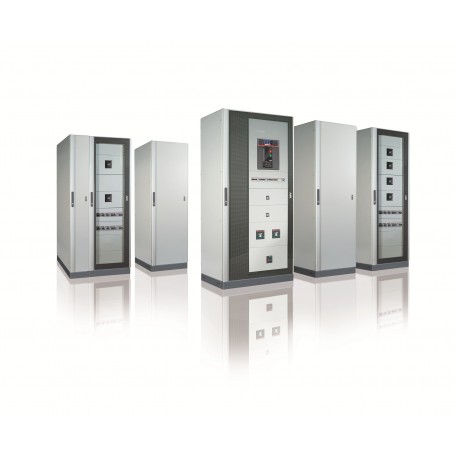

1STQ001248B0000 ABB KIT + centered panel Smissline H1600A800
1STQ001248B0000
1STQ001248B0000
ABB
1 Pcs.
Automation > Component for installation (switchgear cabinet)
Switchboards ArTu
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1STQ001248B0000 ABB KIT + centered panel Smissline H1600A800 is a modular installation kit engineered for mounting busbar systems and protective panels within switchboard columns. Such kits provide precise alignment and secure mechanical fixing for power distribution modules in demanding industrial environments.
Please note that current pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Sub-Function 3: Device Kit
- Suitable For: Modular boards - System pro E Power
- Suitable for Product Class: Main Distribution Boards
- Product Type: 5P5P20P2051
- Remarks: ETIM
- Material: Pickled steel sheet
- RoHS Declaration: 1STE000077
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20231024
- REACH Declaration: 1STE000078
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20241125
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- WEEE Category: Product Not in WEEE Scope
- WEEE B2C / B2B: Business To Business
- Environmental Information: 1STM604200R0002
More info
▲| Technical | |
|---|---|
| Sub-Function 3 | Device Kit |
| Suitable For | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Boards |
| Product Type | 5P5P20P2051 |
| Remarks | ETIM |
| Design | |
| Material | Pickled steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STE000077 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231024 |
| REACH Declaration | 1STE000078 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20241125 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 1STM604200R0002 |
| 9AKK108467A6707 | |
| Dimensions | |
| Product Net Width | 763 mm |
| Product Net Height | 1598 mm |
| Product Net Depth / Length | 12 mm |
| Product Net Weight | 27.2 kg |
| Engineering | |
| Building Information Modeling – BIM | 1STC860077 |
| Ordering | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 30 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860111 |
| Installation | |
| Instructions and Manuals | 1STM604200R0000 |
| Instructions and Manuals (Part 2) | 1SDC007110G0902 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STM604200R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC002620 - Components for installation (enclosure/cabinet) |
| ETIM 10 | EC002620 - Components for installation (enclosure/cabinet) |
| eClass | V11.1 : 27182811 |
