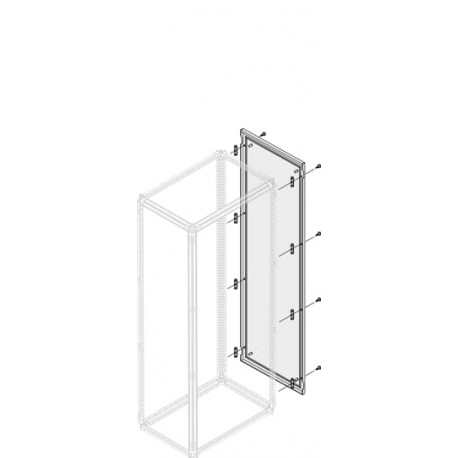

1STQ001247C0000 ABB IP40 PANEL POST VENTI H1800 W600
1STQ001247C0000
1STQ001247C0000
ABB
1 Pcs.
Automation > Side/back panel (switchgear cabinet)
Switchboards ArTu
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB IP40 PANEL POST VENTI H1800 W600 (1STQ001247C0000) acts as a specialized panel post component for modular distribution boards and main switchgear assemblies. Structural posts and panel profiles provide mechanical support and mounting framework for enclosure doors and covers.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: Modular boards - System pro E Power
- Suitable for Product Class: Main Distribution Board
- Product Type: 5P5P15P1520
- RoHS Declaration: 1STE000077
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20231024
- REACH Declaration: 1STE000078
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20241125
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- WEEE Category: Product Not in WEEE Scope
- WEEE B2C / B2B: Business To Business
- Environmental Information: 1STC803005D0208
- Product Net Width: 600 mm
- Product Net Height: 1800 mm
- Product Net Depth / Length: 15 mm
More info
▲| Technical | |
|---|---|
| Suitable For | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Board |
| Product Type | 5P5P15P1520 |
| Material Compliance | |
| RoHS Declaration | 1STE000077 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231024 |
| REACH Declaration | 1STE000078 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20241125 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 1STC803005D0208 |
| 9AKK108467A6707 | |
| Dimensions | |
| Product Net Width | 600 mm |
| Product Net Height | 1800 mm |
| Product Net Depth / Length | 15 mm |
| Product Net Weight | 9.908 kg |
| Engineering | |
| Building Information Modeling – BIM | 1STC860077 |
| Ordering | |
| Package Level 1 Units | packet 1 piece |
| Package Level 1 Gross Weight | 11.868 kg |
| Certificates and Declarations | |
| Installation | |
| Instructions and Manuals | 1STS100387R0001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC803005D0208 |
| External Classifications and Standards | |
| ETIM 9 | EC002524 - Side-/back panel (enclosure/cabinet) |
| ETIM 10 | EC002524 - Side-/back panel (enclosure/cabinet) |
