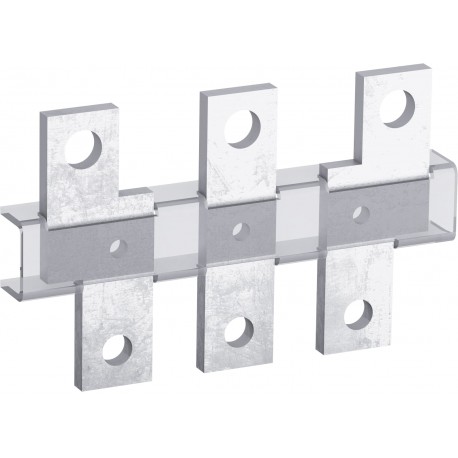

ABB 1SFN074807R2000 1SFN074807R2000 ABB LW205-40 Terminal elongation View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN074807R2000 ABB LW205-40 Terminal elongation

1SFN074807R2000

074807

ABB

1 Pcs.

LW205-40 Terminal elongation LW205-40 Terminal Enlargement

Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

LW205-40 Terminal elongation accessory manufactured by Abb under part number 1SFN074807R2000. Terminal extension bars are typically installed on high-capacity contactors to expand connection surfaces and accommodate larger busbar or cable lugs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: N/A
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 170 mm
  • Product Net Depth / Length: 15 mm
  • Product Net Height: 86 mm
  • Product Net Weight: 0.31 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF190
  • Product Name: Terminal Enlargement
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277
  • WEEE B2C / B2B: Business To Business

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and ManualsN/A
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width170 mm
Product Net Depth / Length15 mm
Product Net Height86 mm
Product Net Weight0.31 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF190
AF205
Product NameTerminal Enlargement
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
cUL CertificateE73397_20140710
Declaration of Conformity - CE2CMT004895
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
Package Level 1 Depth / Length86 mm
Package Level 1 Height15 mm
Package Level 1 Gross Weight0.33 kg
Package Level 1 EAN7320500505489
External Classifications and Standards
Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39120000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
