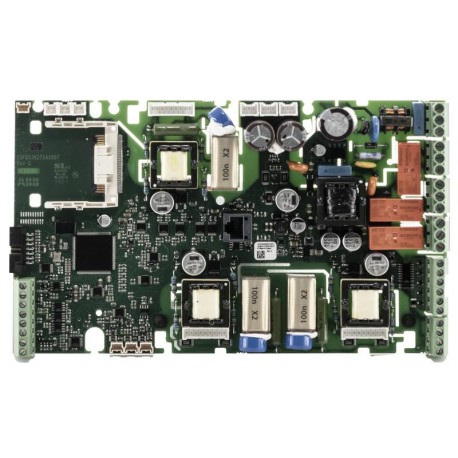

1SFA899020R2690 ABB PSPCB-690C/S CIRCUIT BOARD
1SFA899020R2690
899020
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Spare parts Power Switches ABB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB circuit board (1SFA899020R2690) functions as a specialized internal control or communication board utilized within industrial electronic assemblies and soft starter units. Printed circuit board assemblies manage internal processing, system monitoring, and signal routing for complex electrical hardware.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369001
- Data Sheet, Technical Information: 1SFC132013C0201
- Instructions and Manuals: 5309704-1
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 200 mm
- Product Net Height: 300 mm
- Product Net Depth / Length: 10 mm
- Product Net Weight: 0.47 kg
- Rated Operational Voltage: 380 V AC
- Product Main Type: PSPCB
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2022-006481
- RoHS Declaration: 2CMT2022-006500
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 2CMT2023-006524
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC132013C0201 |
| Instructions and Manuals | 5309704-1 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 200 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 10 mm |
| Product Net Weight | 0.47 kg |
| Technical | |
| Rated Operational Voltage | 380 V AC |
| Main Circuit 690 V | |
| Product Main Type | PSPCB |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006481 |
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Container Information | |
| Package Level 1 Width | 220 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 320 mm |
| Package Level 1 Gross Weight | 0.52 kg |
| Package Level 1 EAN | 7320500225547 |
| Package Level 1 Units | box 1 piece |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000249 - Protection switch disconnector housing |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 43172000 |
