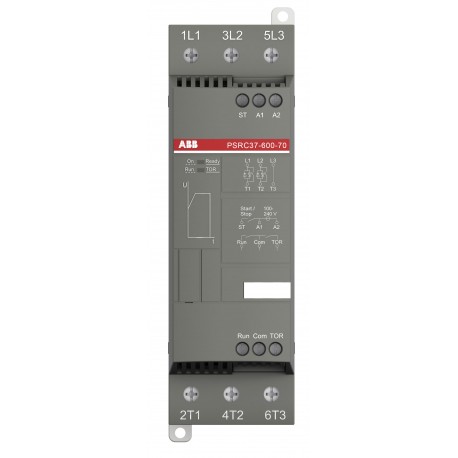

PSRC37-600-70 SOFT COMPRESSOR WHEEL PSRC37-600-70 ARR. SOFT FOR COMPRESSOR PSRC37-600-70 Softstarter - 37 A - 208 ... 600 V AC

Automation > Soft starter
Soft Starters

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for integration into specialized compressor applications, this ABB soft compressor component regulates compressor motor startup to avoid abrupt mechanical jolts. Reliable soft starting safeguards internal compressor mechanisms and keeps pressure systems running smoothly.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85371091
  • Data Sheet, Technical Information: 1SFC132012C0201
  • Instructions and Manuals: 1SFC132043M0001
  • Instructions and Manuals (Part 3): 1SFC132060M0201
  • CAD Dimensional Drawing: 2CDC001079B0201
  • EPLAN Data: 9AAC172773_EPLAN
  • Wiring Diagram: N/A
  • Product Net Width: 153 mm
  • Product Net Height: 187 mm
  • Product Net Depth / Length: 54 mm
  • Product Net Weight: 1 kg
  • Rated Operational Voltage: 208 ... 600 V AC
  • Rated Control Supply Voltage (U s ): 100 ... 240 V AC
  • Rated Control Circuit Voltage (U c ): 24 V DC
  • Rated Frequency (f): 50/60 Hz

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85371091
Popular Downloads
Data Sheet, Technical Information1SFC132012C0201
Instructions and Manuals1SFC132043M0001
Instructions and Manuals (Part 3)1SFC132060M0201
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC172773_EPLAN
Wiring DiagramN/A
Dimensions
Product Net Width153 mm
Product Net Height187 mm
Product Net Depth / Length54 mm
Product Net Weight1 kg
Technical
Rated Operational Voltage208 ... 600 V AC
Rated Control Supply Voltage (Us)100 ... 240 V AC
Rated Control Circuit Voltage (Uc)24 V DC
Rated Frequency (f)50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe)(230 V) 7.5 kW
(400 V) 18.5 kW
(500 V) 22 kW
Rated Operational Current - In-Line Connection (Ie)37 A
Service Factor Percentage100 %
Overload ProtectionRecommended MS450 28 ... 40
Integrated Electronic OverloadNo
Starting Capacity at Maximum Rated Current Ie4xIe for 6s
Ramp TimeFixed setting
Fixed setting
Initial Voltage During StartFixed setting
Step Down Voltage Special RampFixed setting
Current Limit FunctionNo
Switch for Inside Delta ConnectionNo
Run Signal RelayYes
By-pass Signal RelayYes
Fault Signal RelayNo
Overload Signal RelayNo
Signal Indication Completed Start Ramp (LED)Green
Signal Indication Ready to Start/Standby ON (LED)Green
Signal Indication Running R (LED)Green
Signal Indication Ramping Up/Down (LED)Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time10
CommunicationFiledBusPlug(Optional)
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal TypeScrew Terminals
Connecting Capacity Main CircuitRigid 1 x 0.75 ... 2.5 mm²
Connecting Capacity Supply CircuitRigid 1 x 0.75 ... 2.5
Tightening TorqueControl Circuit 0.6 N·m
Main Circuit 4 N·m
Supply Circuit 0.6 N·m
Product Main TypePSRC37
FunctionSoft start with voltage ramp
Soft stop with voltage ramp
Technical UL/CSA
Horsepower Rating UL/CSA(200 ... 208 V AC) Three Phase 10 Hp
(220 ... 240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 25 Hp
(550 ... 600 V AC) Three Phase 30 Hp
Maximum Operating Voltage UL/CSAMain Circuit 600 V
Tightening Torque UL/CSAControl Circuit 5.3 in·lb
Main Circuit 35.4
Supply Circuit 5.3 in·lb
Environmental
Ambient Air TemperatureOperation -25 ... +60 °C
Storage -40 ... +70 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006481
RoHS Declaration2CMT2022-006500
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006524
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CQC CertificateCQC2006010304208083
Declaration of Conformity - CCC2020980304001089
Declaration of Conformity - CE2CMT003878
Container Information
Package Level 1 Width163 mm
Package Level 1 Depth / Length56 mm
Package Level 1 Height217 mm
Package Level 1 Gross Weight1.1 kg
Package Level 1 EAN7320500465547
Package Level 1 Unitsbox 1 piece
External Classifications and Standards
Object Classification CodeQ
ETIM 7EC000640 - Soft starter
ETIM 8EC000640 - Soft starter
ETIM 9EC000640 - Soft starter
eClassV11.0 : 27370907
UNSPSC39121521
IDEA Granular Category Code (IGCC)4740 >> Soft starter
